4 Door Model

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
  2. Remove the trim panel assembly - rear shelf. < Ref. to REMOVAL , Rear Shelf Trim. >
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

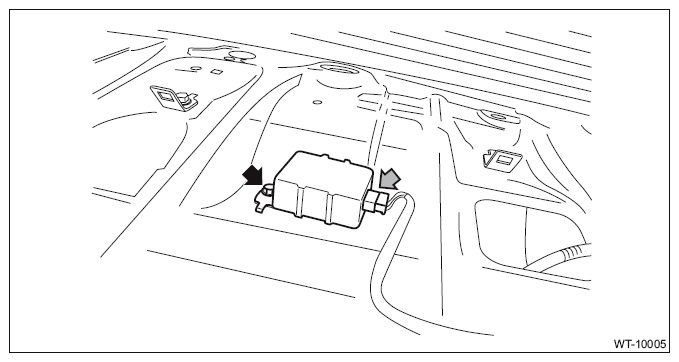

      Fig 1: Locating Keyless Entry Control Module
      G10323351Courtesy of SUBARU OF AMERICA, INC.
