Circuit figure

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

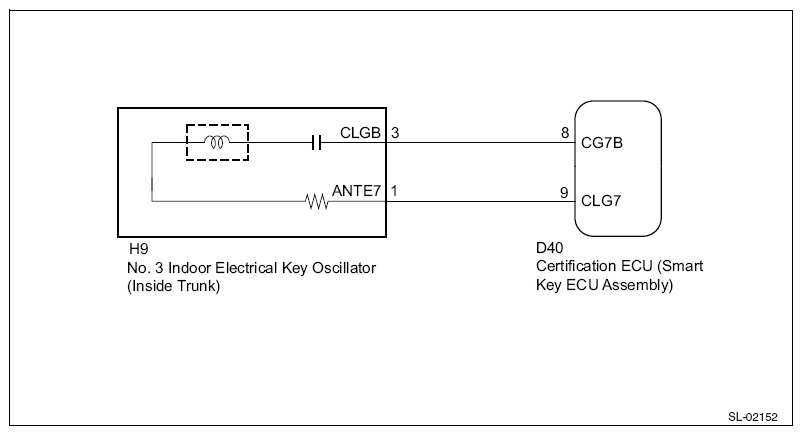

Fig 1: No. 3 Indoor Electrical Key Oscillator And Certification ECU - Circuit Diagram (Inside Trunk)
G08553082Courtesy of SUBARU OF AMERICA, INC.
