Section 49 (Entry Start System Entry System (Keyless Entry))
>>
Entry & Start System (Entry Function)
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

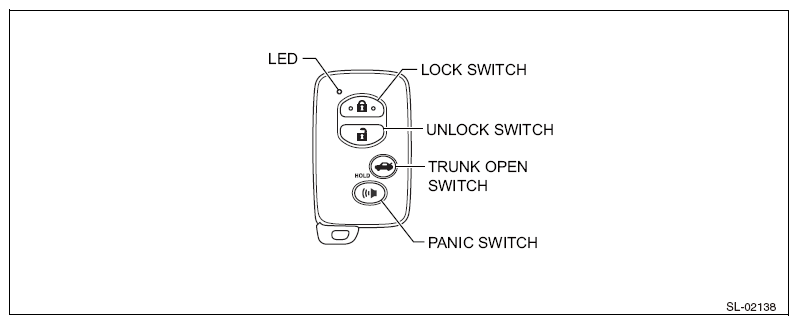

Fig 1: Entry And Start System Components Location (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

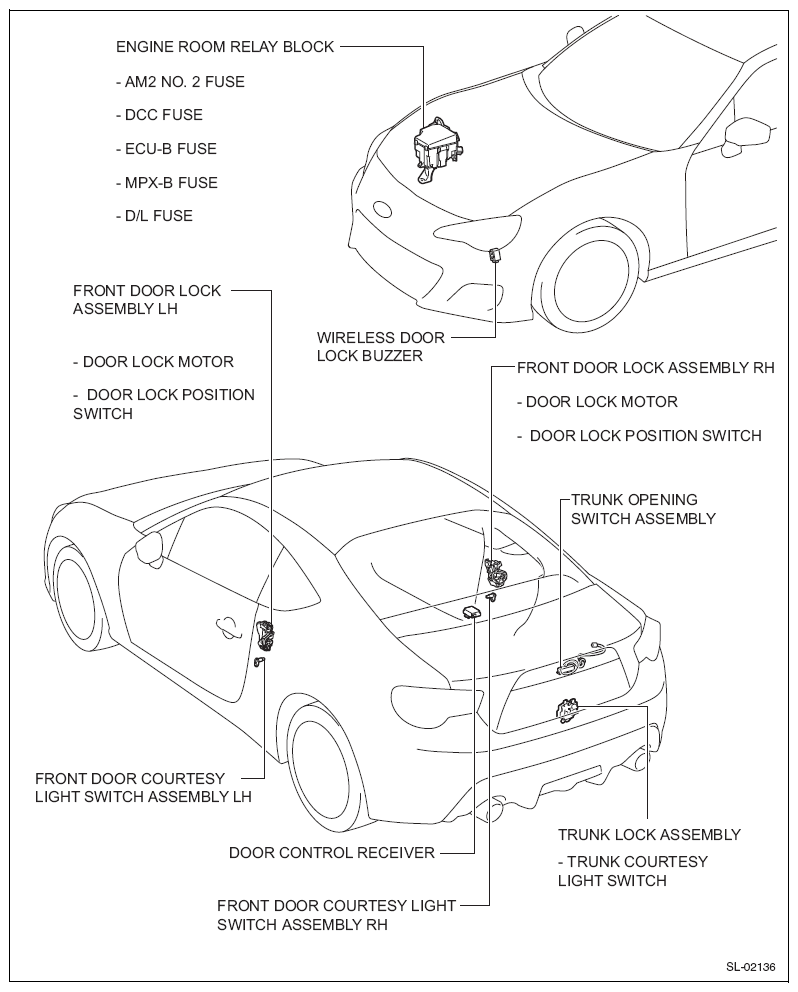

Fig 2: Entry And Start System Components Location (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

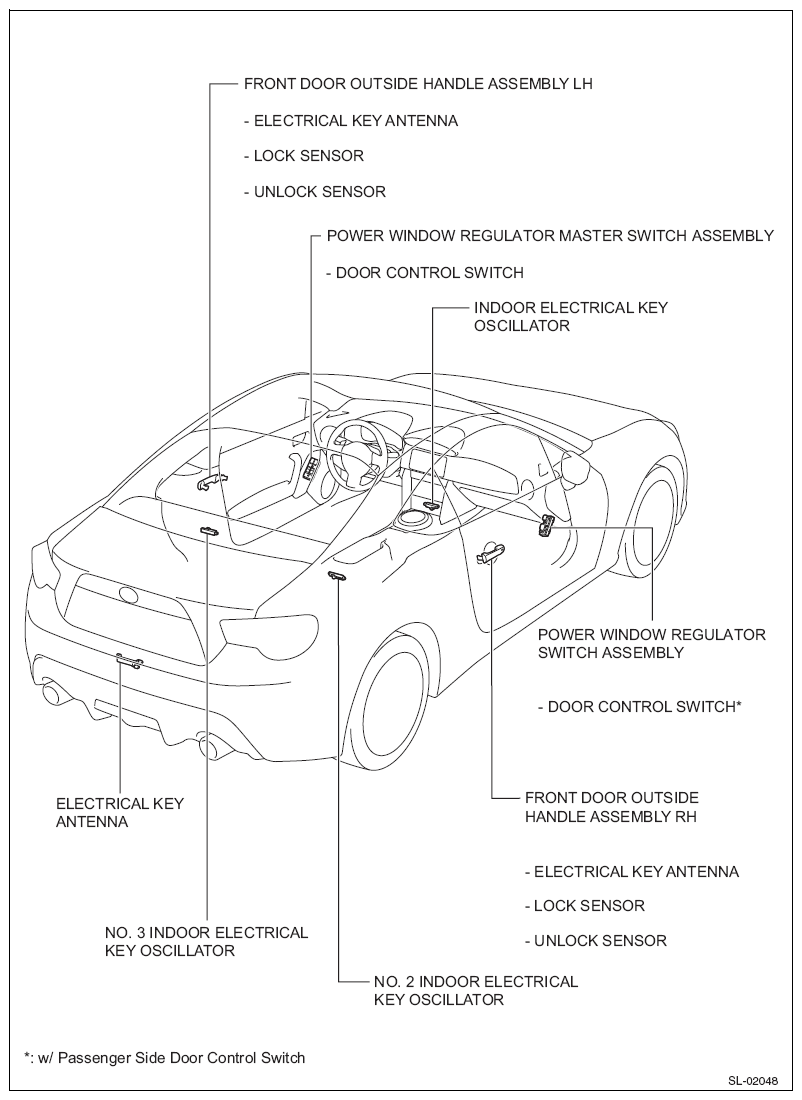

Fig 3: Entry And Start System Components Location (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

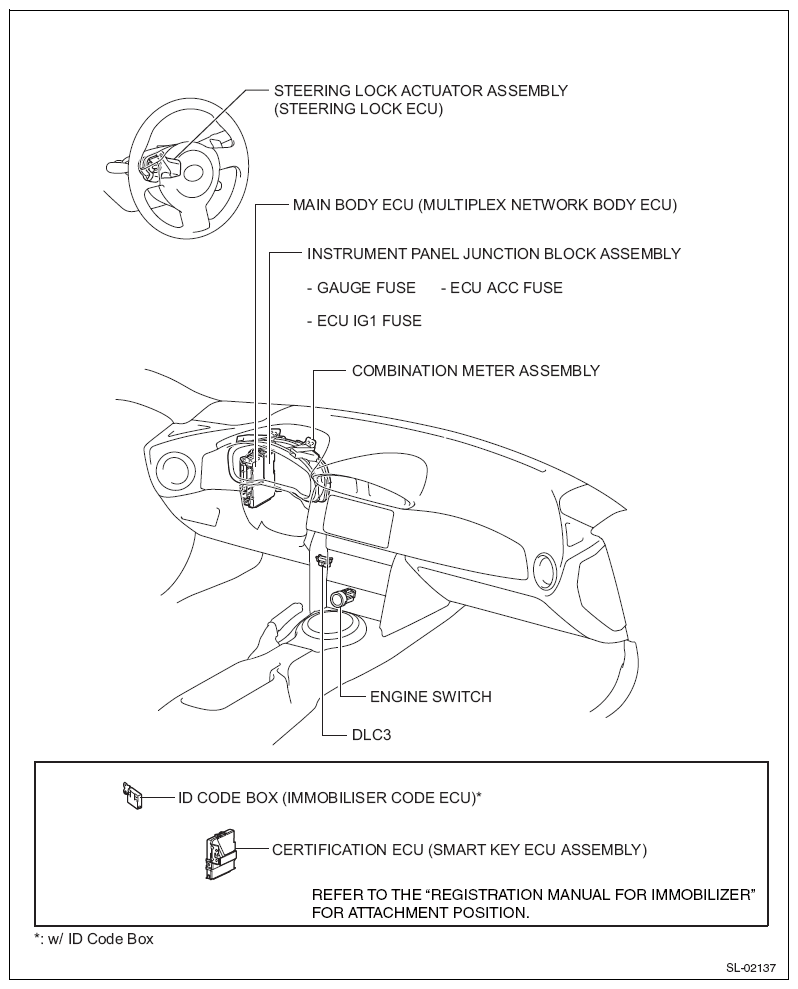

Fig 4: Entry And Start System Components Location (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
