Circuit figure

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

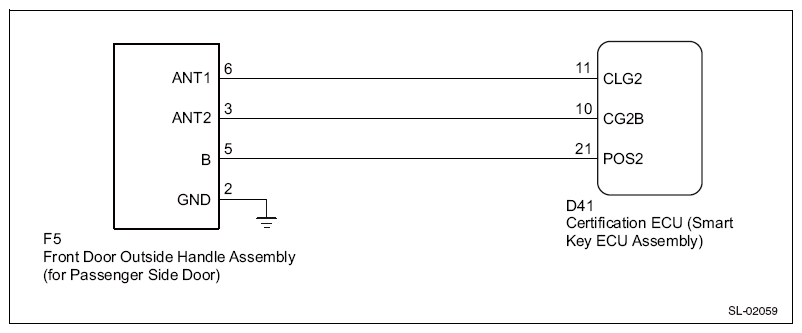

Fig 1: Front Door Outside Handle Assembly And Certification ECU - Circuit Diagram (For Passenger Side Door)
G08553063Courtesy of SUBARU OF AMERICA, INC.
