Circuit figure

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

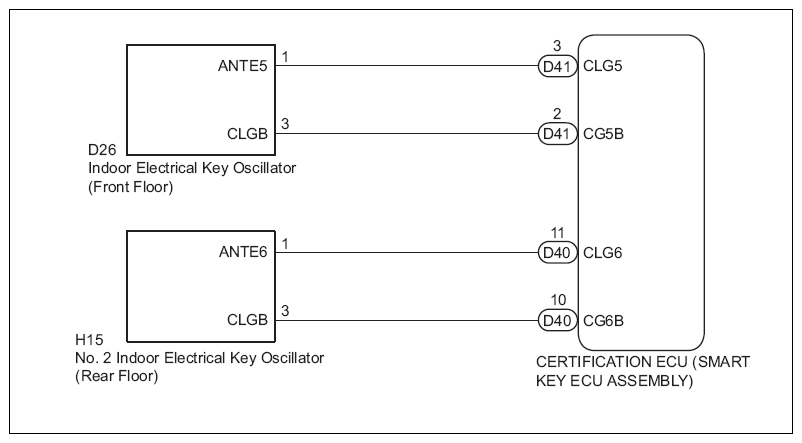

Fig 1: Indoor Electrical Key Oscillator (Front And Rear) And Certification ECU - Circuit Diagram
G08553070Courtesy of SUBARU OF AMERICA, INC.
