Parts Location

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

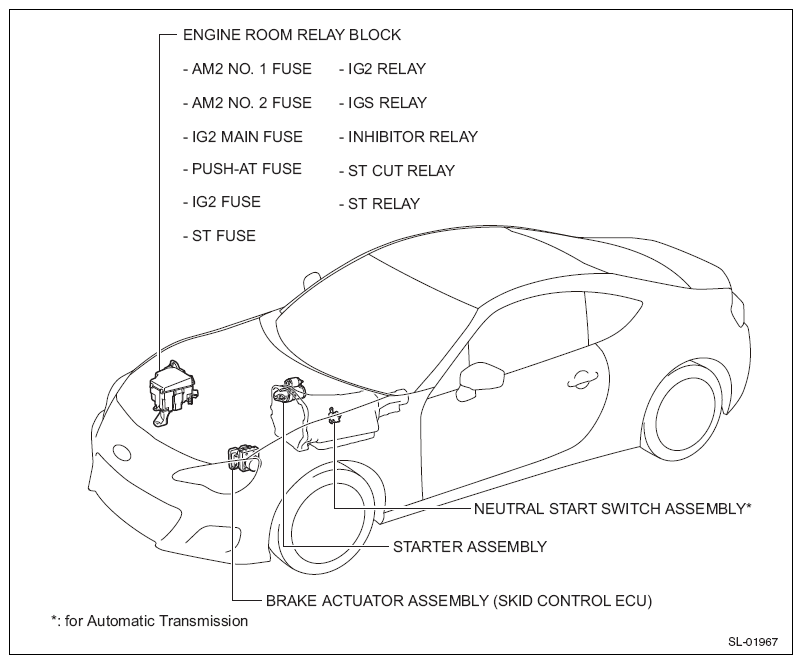

Fig 1: Identifying Entry & Start System Components (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

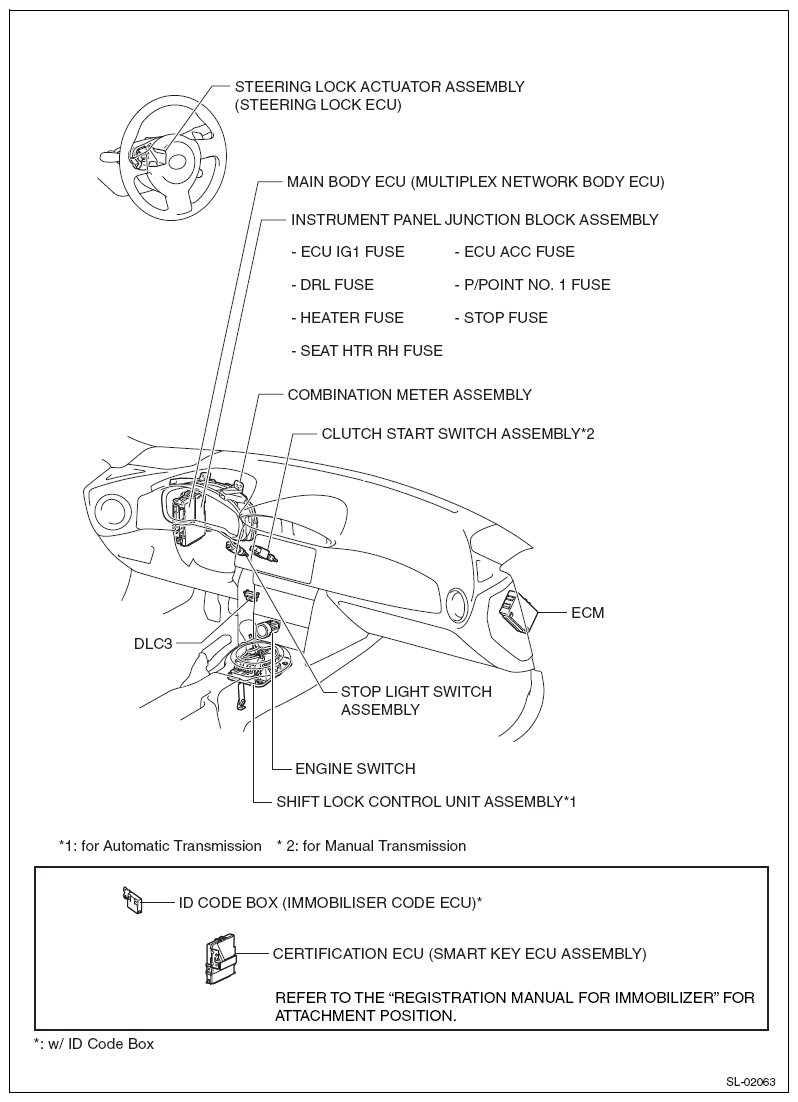

Fig 2: Identifying Entry & Start System Components (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

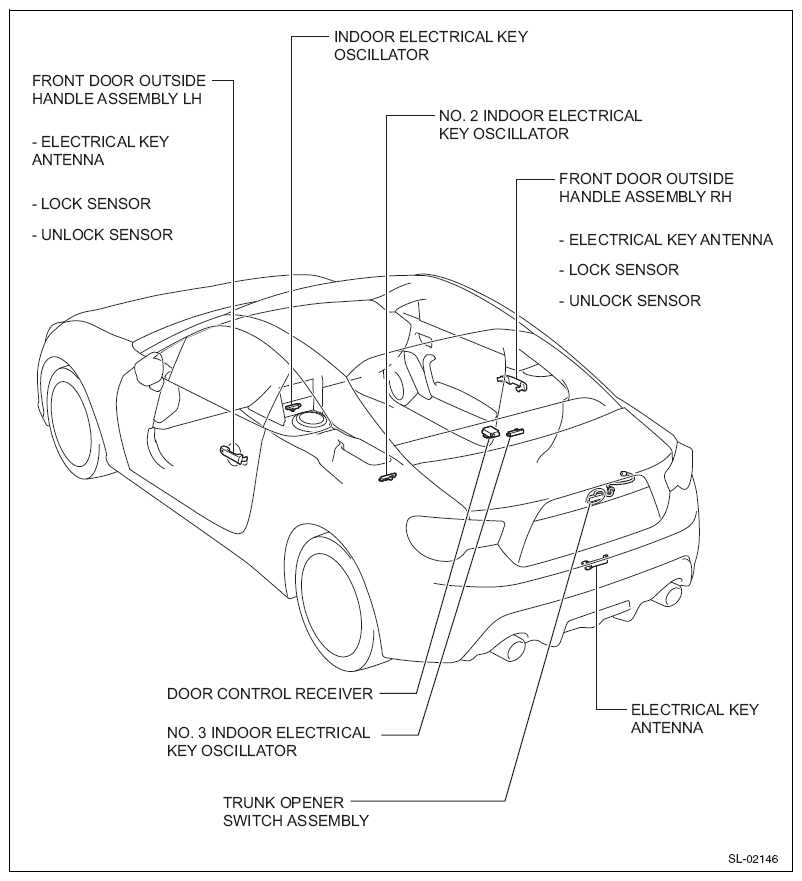

Fig 3: Identifying Entry & Start System Components (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
