Inspection steps

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The entry & start system has functions that use the CAN communication. Before performing troubleshooting, perform the inspection in "How to troubleshoot", and check that there are no communication problems. (Refer to HOW TO PROCEED WITH TROUBLESHOOTING  )
  • Before replacing the collation ECM (smart key ECM ASSY), refer to "ENTRY & START SYSTEM (ENTRY FUNCTION) ". (Refer to ENTRY & START SYSTEM (ENTRY FUNCTION)
  • After repair, perform the [DTC output confirmation operation], and check that the DTC is not output again.
  • Before performing the following inspection steps, check the fuses related to this system.
  1. Checking the harnesses and connectors
    1. Remove the D40 and the D48 connectors of the collation ECM (smart key ECM ASSY).
    2. Remove the A35 connector of the ECM.
    3. Measure the resistance according to the following table.
      RESISTANCE

      Inspection terminals Inspection conditions Standard value
      D40-28 (ACCR) - A35-32(ACCR) Always 1 Ωor less
      D48-11 (GND) - chassis ground Always 1 Ωor less
      D40-28 (ACCR) - chassis ground Always 10 kΩ or more

      NG: Replacement of the harnesses or connectors

      OK: Go to Next Step

  2. Unit inspection of the collation ECM (smart key ECM ASSY)
    1. Reconnect the D41, D40, and D48 connectors of the collation ECM (smart key ECM ASSY).
    2. Reconnect the A35 connector of the ECM.
    3. Measure the voltage according to the following table.

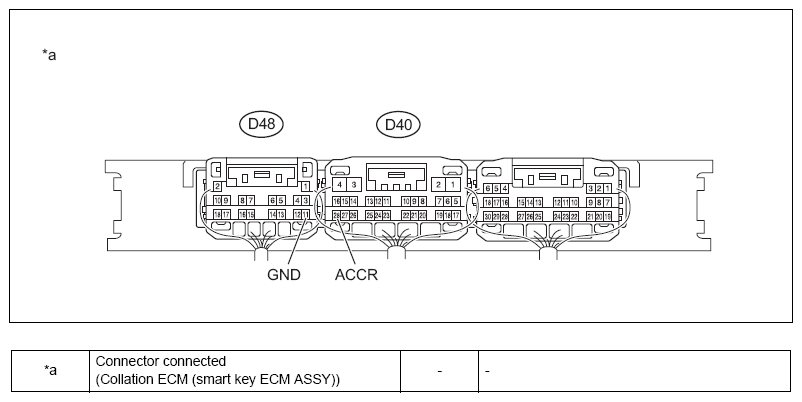

      Fig 1: Identifying Smart Key ECM Assembly ACCR And GND Terminals
      G08553119Courtesy of SUBARU OF AMERICA, INC.
      VOLTAGE

      Inspection terminals Inspection conditions Standard value
      D40-28 (ACCR) - D48-11 (GND)(1) Step on the brake pedal (1) or the clutch pedal (2) and press the engine switch (starter on)→ After approx. 1 second, the engine switch is released (starter off) 2V or less →9 V or more
      (1) With automatic transmission
      (2) for manual transmission

      NG: Replace the ECM

      OK: Replacement of the collation ECM (smart key ECM ASSY)
