Inspection steps

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The entry & start system has functions that use the CAN communication. Before performing troubleshooting, perform the inspection in "How to troubleshoot", and check that there are no communication problems. (Refer to HOW TO PROCEED WITH TROUBLESHOOTING  )
  • Before replacing the collation ECM (smart key ECM ASSY), refer to "ENTRY & START SYSTEM (ENTRY FUNCTION) ". (Refer to ENTRY & START SYSTEM (ENTRY FUNCTION)
  • After repair, perform the [DTC output confirmation operation], and check that the DTC is not output again.
  • Before performing the following inspection steps, check the fuses related to this system.
  1. Checking the harnesses and connectors (collation ECM - ECM)
    1. Remove the D48 connector of the collation ECM (smart key ECM ASSY).
    2. Remove the A33 connector of the ECM.
    3. Measure the resistance according to the following table.
      RESISTANCE

      Tester conditions Inspection conditions Standard value
      D48-7 (STSW) - A33-17 (START) Always 1 Ωor less
      D48-11 (GND) - chassis ground Always 1 Ωor less
      D48-7 (STSW) - chassis ground Always 10 kΩ or more

      NG: Repair or replacement of the harnesses or connectors

      OK: Go to Next Step

  2. Unit inspection of the collation ECM (smart key ECM ASSY)
    1. Reconnect the D48 connector of the collation ECM (smart key ECM ASSY).
    2. Reconnect the A33 connector of the ECM.
    3. Measure the voltage according to the following table.

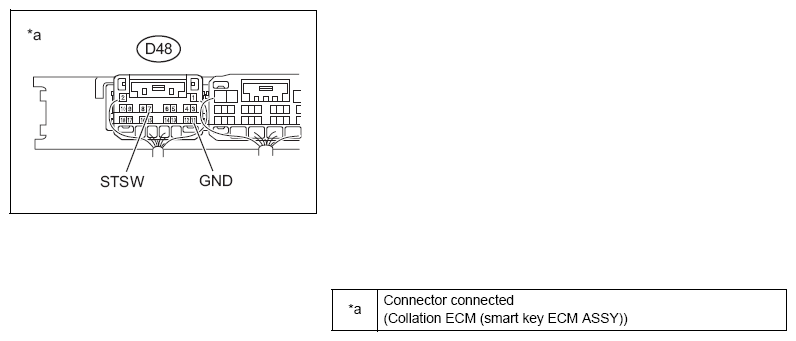

      Fig 1: Identifying Smart Key ECM Assembly STSW And GND Terminals
      G08553117Courtesy of SUBARU OF AMERICA, INC.
      VOLTAGE

      Inspection terminals Inspection conditions Standard value
      D48-7 (STSW) - D48-11 (GND) Step on the brake pedal (1) or the clutch pedal (2) and press the engine switch (starter on)→ After approx. 1 second, the engine switch is released (starter off) 2V or less →9 V or more
      (1) With automatic transmission
      (2) for manual transmission

      Measure the voltage according to the following table.

      NG: Replacement of the collation ECM (smart key ECM ASSY)

      OK: Proceed to the "EFI system" ("How to troubleshoot")
