Inspection steps
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- The entry & start system has functions that use the CAN communication. Before performing troubleshooting, perform the inspection in "How to troubleshoot", and check that there are no communication problems. (Refer to HOW TO PROCEED WITH TROUBLESHOOTING )
- Before replacing the collation ECM (smart key ECM ASSY), refer to "ENTRY & START SYSTEM (ENTRY FUNCTION) ". (Refer to ENTRY & START SYSTEM (ENTRY FUNCTION) )
- After repair, perform the [DTC output confirmation operation], and check that the DTC is not output again.
- Before performing the following inspection steps, check the fuses related to this system.
- Checking the harnesses and connectors (power supply)

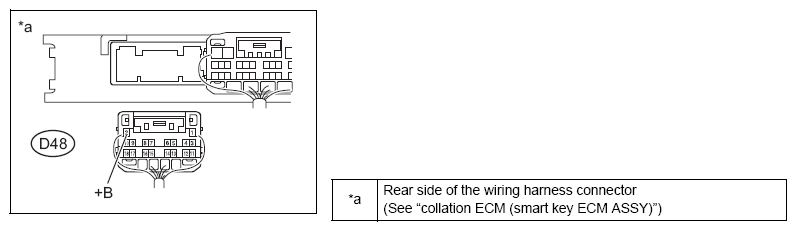

- Remove the D48 connector of the collation ECM (smart key ECM ASSY).
- Measure the voltage according to the following table.VOLTAGE
Inspection terminals Inspection conditions Standard value D48-2 (+B) - chassis ground Always 9.5 to 16 V Courtesy of SUBARU OF AMERICA, INC.
NG: Repair or replacement of the harnesses or connectors of the circuits that connect to the power source
OK: Go to Next Step

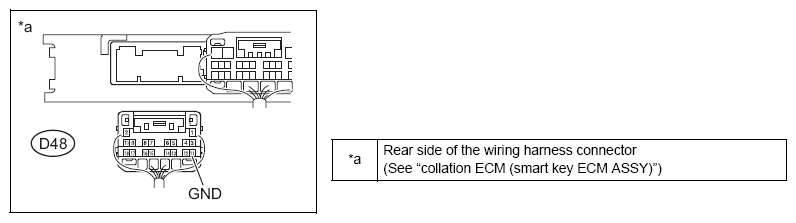

- Checking the harnesses and connectors (grounding)
- Unit inspection of the collation ECM (smart key ECM ASSY)
- Reconnect the D48 connector of the collation ECM (smart key ECM ASSY).

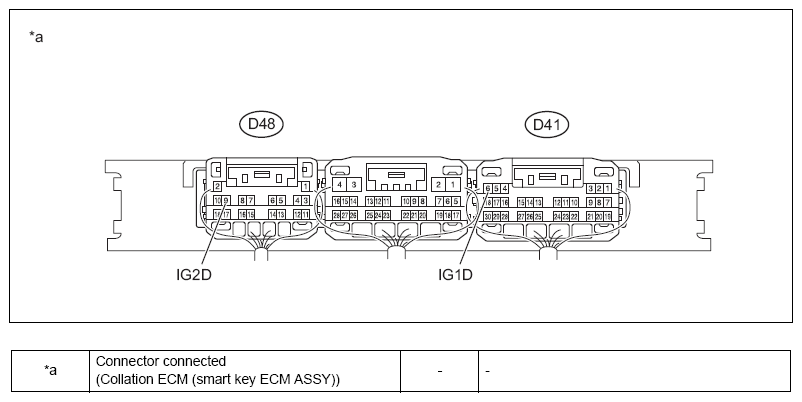

- Measure the voltage according to the following table.VOLTAGE
Inspection terminals Inspection conditions Standard value D41-6 (IG1D) - chassis ground Engine switch on (ACC) →Engine switch on (IG) 1V or less →9 V or more D48-9 (IG2D) - chassis ground Engine switch on (ACC) →Engine switch on (IG) 1V or less →9 V or more NG: Replacement of the collation ECM (smart key ECM ASSY)
OK: Complete (Possibly temporary poor contact)
