Circuit description

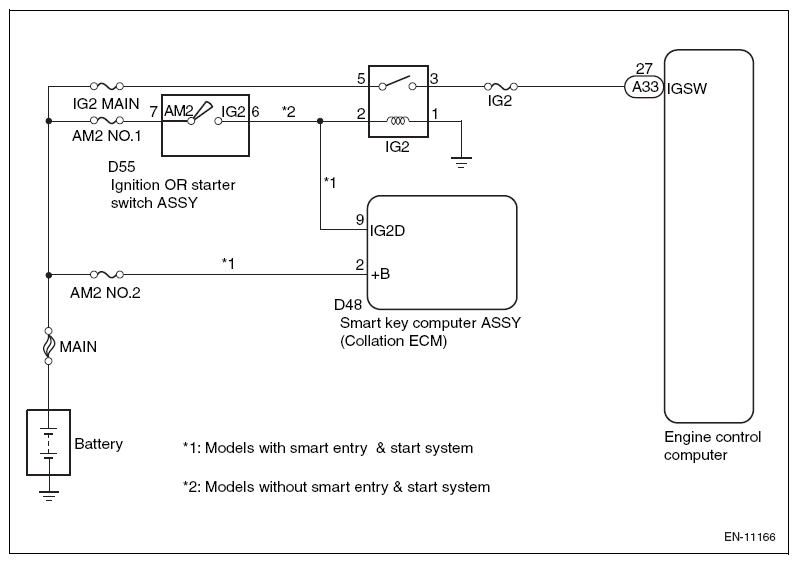

Fig 1: Ignition SW Circuit Diagram
G10212950Courtesy of SUBARU OF AMERICA, INC.
DTC DETECTION CONDITION

DTC No. DTC detection conditions Suspected parts
P2530 Ignition switch input circuit is instantaneously interrupted 5 times or more
(1 trips detection logic)
  • IG SW
