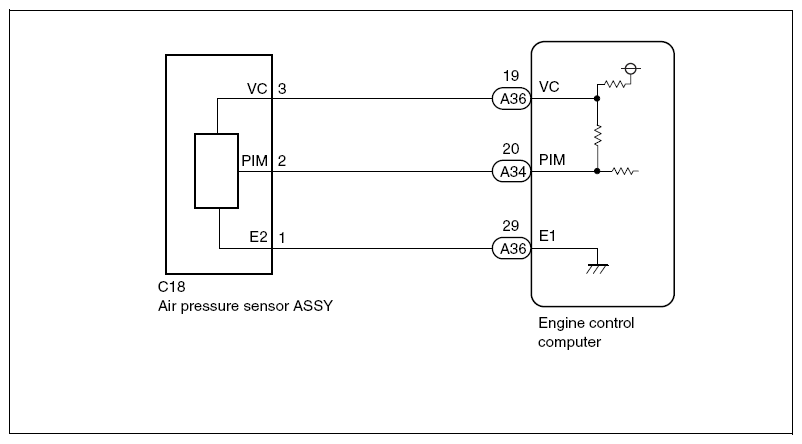

Home >> Subaru >> 2016 >> BRZ Series.HyperBlue >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnostics (1 Of 3) >> DTC P0107 Manifold Absolute Pressure/Barometric Pressure Circuit Low Input; DTC P0108 Manifold Absolute Pressure/Barometric Pressure Circuit High Input >> Circuit figure
