Oil Pump Assembly (Fa20): Assembly

Fig 1: Locating Camshaft Timing Oil Control Valve Assembly O-Ring
G10214002Courtesy of SUBARU OF AMERICA, INC.
  1. Installation of camshaft timing oil control valve assembly (bank 2 exhaust side)
    1. Install a new O-ring to the cam timing oil control valve assembly.
    2. Apply engine oil to the O-ring.
      Fig 2: Locating Camshaft Timing Oil Control Valve Assembly Bolts (Bank 2 Exhaust Side)
      G10214003Courtesy of SUBARU OF AMERICA, INC.
    3. Using 2 bolts, install the camshaft timing oil control valve assembly.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

    Fig 3: Locating Camshaft Timing Oil Control Valve Assembly O-Ring
    G10214004Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of camshaft timing oil control valve assembly (bank 2 intake side)
    1. Install a new O-ring to the cam timing oil control valve assembly.
    2. Apply engine oil to the O-ring.
      Fig 4: Locating Camshaft Timing Oil Control Valve Assembly Bolts (Bank 2 Intake Side)
      G10214005Courtesy of SUBARU OF AMERICA, INC.
    3. Using 2 bolts, install the camshaft timing oil control valve assembly.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

      Fig 5: Locating Camshaft Timing Oil Control Valve Assembly O-Ring (Bank 2 Exhaust Side)
      G10214006Courtesy of SUBARU OF AMERICA, INC.
  3. Installation of camshaft timing oil control valve assembly (bank 1 exhaust side)
    1. Install a new O-ring to the cam timing oil control valve assembly.
    2. Apply engine oil to the O-ring.
      Fig 6: Locating Camshaft Timing Oil Control Valve Assembly Bolts (Bank 1 Exhaust Side)
      G10214007Courtesy of SUBARU OF AMERICA, INC.
    3. Using 2 bolts, install the camshaft timing oil control valve assembly.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

      Fig 7: Locating Camshaft Timing Oil Control Valve Assembly O-Ring (Bank 1 Intake Side)
      G10214008Courtesy of SUBARU OF AMERICA, INC.
  4. Installation of camshaft timing oil control valve assembly (bank 1 intake side)
    1. Install a new O-ring to the cam timing oil control valve assembly.
    2. Apply engine oil to the O-ring.
      Fig 8: Locating Camshaft Timing Oil Control Valve Assembly Bolts (Bank 1 Intake Side)
      G10214009Courtesy of SUBARU OF AMERICA, INC.
    3. Using 2 bolts, install the camshaft timing oil control valve assembly.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

  5. Cam position sensor installation (bank 2 exhaust side)
    1. Attach a new O-ring to the camshaft position sensor.
    2. Apply engine oil to the O-ring.
      Fig 9: Locating Camshaft Position Sensor Bolt (Bank 2 Exhaust Side)
      G10214010Courtesy of SUBARU OF AMERICA, INC.
    3. Using bolt, install the camshaft position sensor.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

  6. Cam position sensor installation (bank 2 intake side)
    1. Attach a new O-ring to the camshaft position sensor.
    2. Apply engine oil to the O-ring.

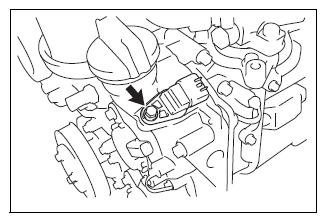

      Fig 10: Locating Camshaft Position Sensor Bolt (Bank 2 Intake Side)
      G10214011Courtesy of SUBARU OF AMERICA, INC.
    3. Using bolt, install the camshaft position sensor.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

  7. Cam position sensor installation (bank 1 exhaust side)
    1. Attach a new O-ring to the camshaft position sensor.
    2. Apply engine oil to the O-ring.
      Fig 11: Locating Camshaft Position Sensor Bolt (Bank 1 Exhaust Side)
      G10214012Courtesy of SUBARU OF AMERICA, INC.
    3. Using bolt, install the camshaft position sensor.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

  8. Cam position sensor installation (bank 1 intake side)
    1. Attach a new O-ring to the camshaft position sensor.
    2. Apply engine oil to the O-ring.
      Fig 12: Locating Camshaft Position Sensor Bolt (Bank 1 Intake Side)
      G10214013Courtesy of SUBARU OF AMERICA, INC.
    3. Using bolt, install the camshaft position sensor.

      Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}

  9. Engine oil temperature sensor installation
    1. Install a new gasket to the engine oil temperature sensor.
      Fig 13: Installing Engine Oil Temperature Sensor
      G10214014Courtesy of SUBARU OF AMERICA, INC.
    2. Install the engine oil temperature sensor.

      Standard value: T=18N.m {184kgf.cm} {13.3ft.lbf}

  10. Engine oil pressure switch assembly installation
    1. Degrease the threaded portion of engine oil pressure switch assembly.
      Fig 14: Applying Sealant On Engine Oil Pressure Switch Assembly
      G10214015Courtesy of SUBARU OF AMERICA, INC.
    2. Apply THREE BOND 1324 to the threaded portion.
      CAUTION: Do not apply THREE BOND 1324 to the oil hole.

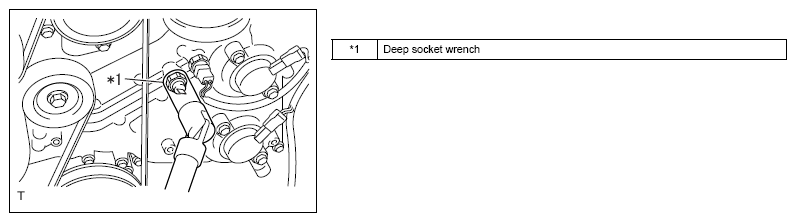

      Fig 15: Installing Engine Oil Pressure Switch Assembly
      G10214016Courtesy of SUBARU OF AMERICA, INC.
    3. Install the engine oil pressure switch assembly.

      Standard value: T=18N.m {184kgf.cm} {13.3ft.lbf}

      CAUTION: Do not start the engine within 1 hour after the assembly.
  11. Oil filter union installation (Refer to OIL & OIL FILTER (FA20)  )
  12. Oil filter installation (Refer to OIL & OIL FILTER (FA20)  )
