Air Cleaner Case Sub-ASSY (Fa20)
>>
Exploded view
Exploded view

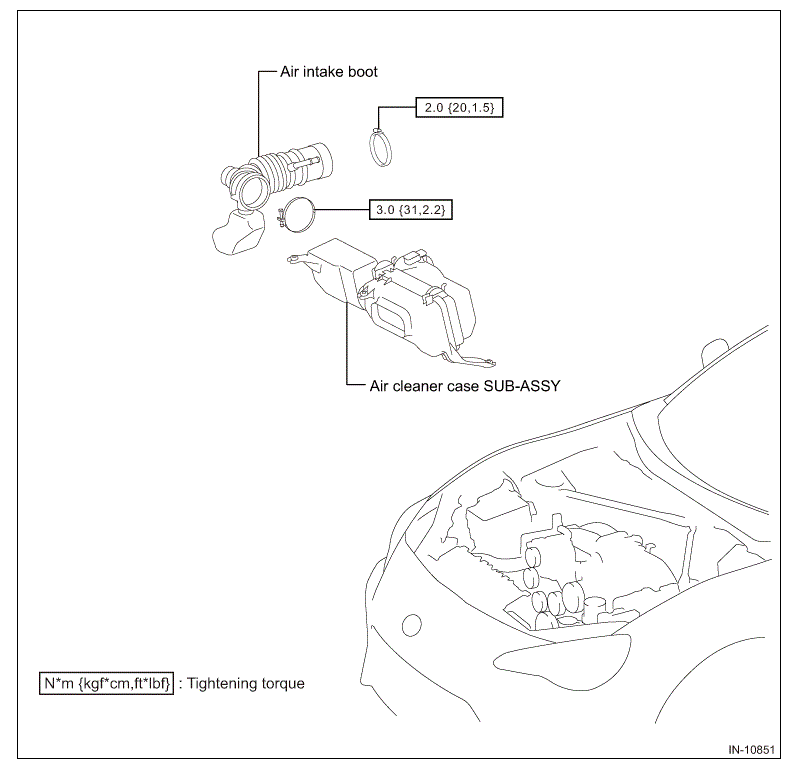

Fig 1: Exploded View Of Air Cleaner Case SUB-ASSY with Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
