Circuit Figure

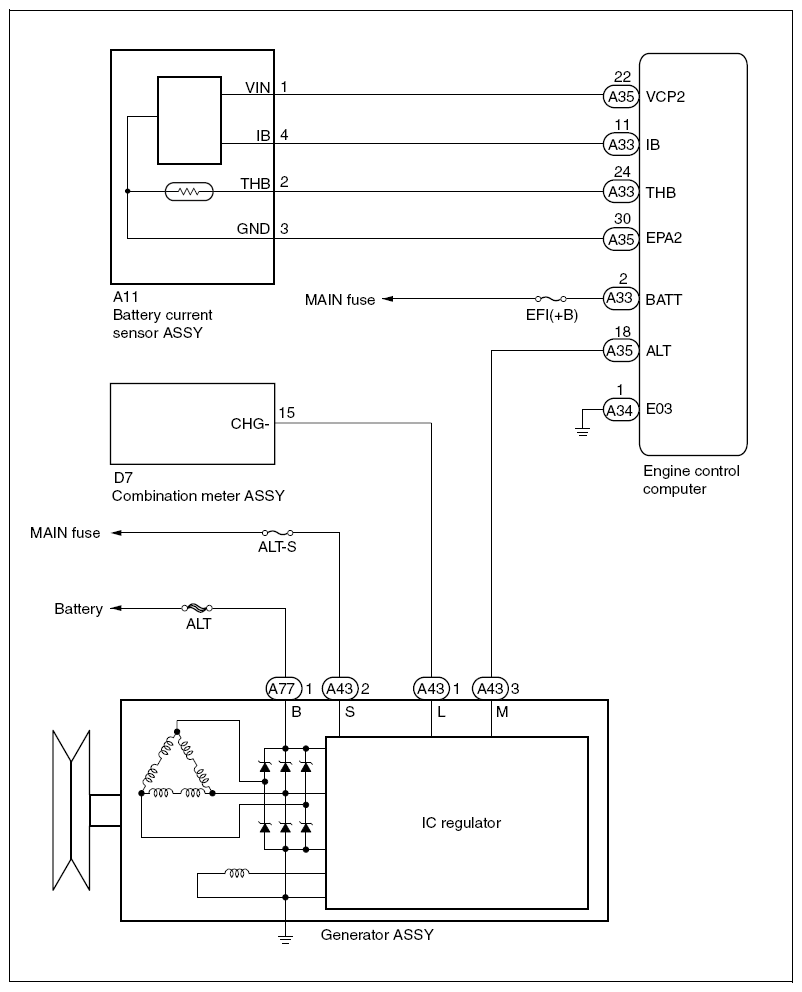

Fig 1: Charging System Circuit Diagram

G10215864

Courtesy of SUBARU OF AMERICA, INC.
