Brake Actuator Assembly: Removal

Precautions for brake pipe work
(Refer to BRAKE LINE )
Draining of brake fluid
CAUTION: Do not let brake fluid come into contact with the painted surface. If it happens, wash it out immediately.
Removal of front tire LH
Removal of front mud guard LH (Refer to WASHER MOTOR )
Removal of brake actuator assembly W/bracket
1. Disconnect the harness clamp from the bracket.

  Fig 1: Locating Harness Clamp Bracket
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the harness clamp from the bracket.

  Fig 2: Locating Harness Clamp Bracket
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the cooler pipe from the clamp.

  Fig 3: Locating Cooler Pipe Clamp
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the clamp from the wiring harness of the speed sensor FR LH.

  Fig 4: Locating Speed Sensor Wiring Harness Clamp FR LH
  Courtesy of SUBARU OF AMERICA, INC.

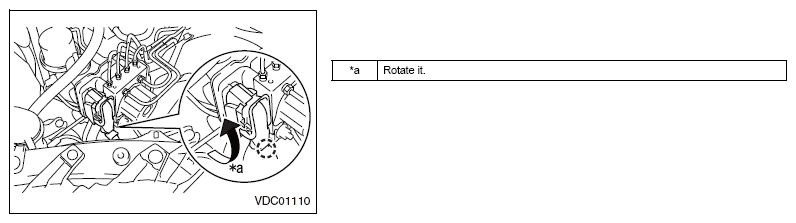

5. Press the claw on the vehicle wiring harness connector to remove the engaging part, and then rotate the lock lever upward to unlock.

  Fig 5: Rotating Lock Lever
  Courtesy of SUBARU OF AMERICA, INC.
6. Disconnect the vehicle wiring harness connector from the brake actuator assembly.
7. Using a flare-nut wrench, disconnect 2 brake tubes.
  CAUTION: Protect the connector surface from contact with brake fluid.

  Fig 6: Locating Brake Tubes And Nuts
  Courtesy of SUBARU OF AMERICA, INC.
8. Using a flare-nut wrench, disconnect 4 brake tubes.
  CAUTION: Protect the connector surface from contact with brake fluid.

  Fig 7: Locating Brake Tubes And Nuts
  Courtesy of SUBARU OF AMERICA, INC.

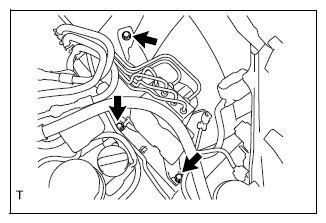

9. Remove the bolt from the brake actuator assembly W/bracket.

  Fig 8: Locating Brake Actuator Assembly W/Bracket Bolt
  Courtesy of SUBARU OF AMERICA, INC.
10. Remove 3 bolts from the brake actuator assembly W/bracket.
11. Remove the brake actuator assembly W/bracket from the body.
  CAUTION: Do not bend or damage the brake tubes.

  Fig 9: Locating Brake Actuator Assembly W/Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.
