Repair and Diagnosis (Single Page)
>>
Electrical
>>
Gauges
>>
Interior Trim/Instrument Panel
>>
Instrument Panel Lower
>>
Exploded View
Exploded View
Fig 1: Exploded View Of Instrument Panel Lower (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

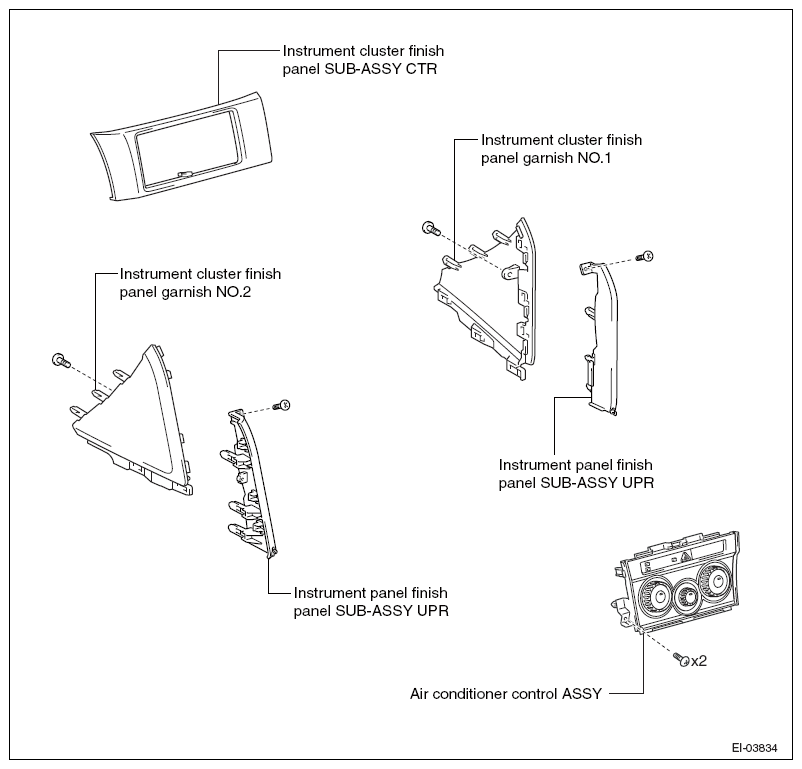

Fig 2: Exploded View Of Instrument Panel Lower (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

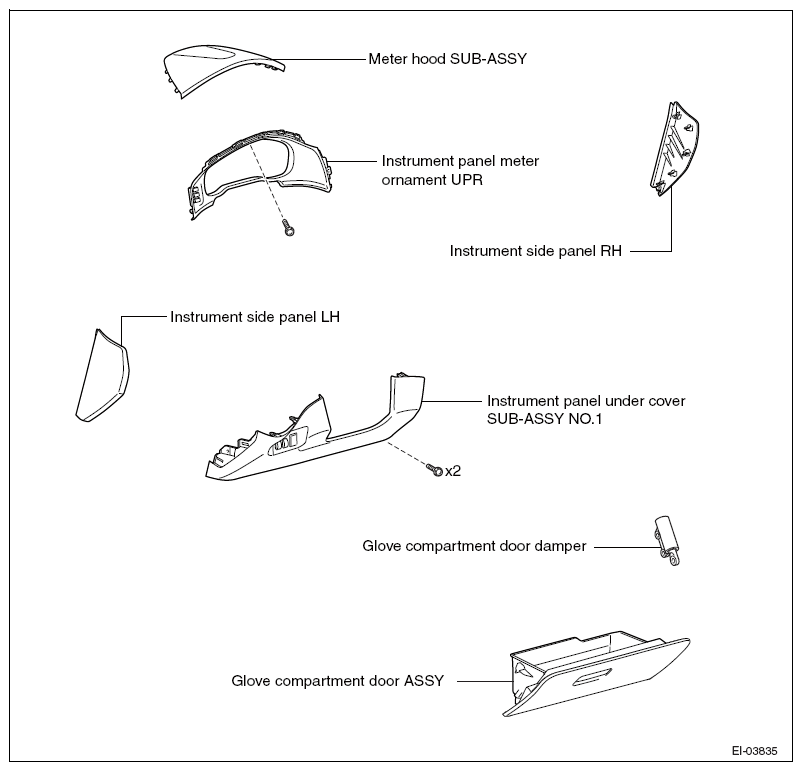

Fig 3: Exploded View Of Instrument Panel Lower (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

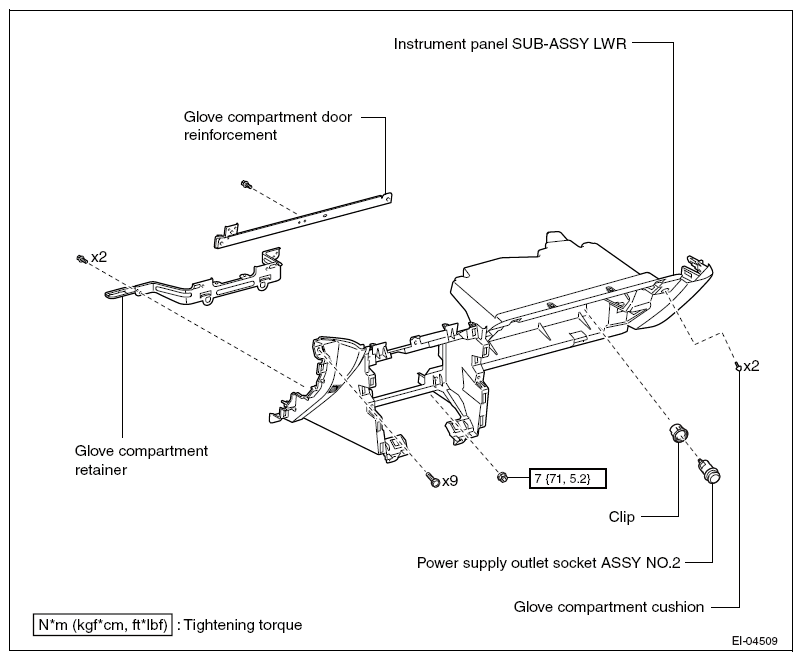

Fig 4: Exploded View Of Instrument Panel Lower With Torque Specifications (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

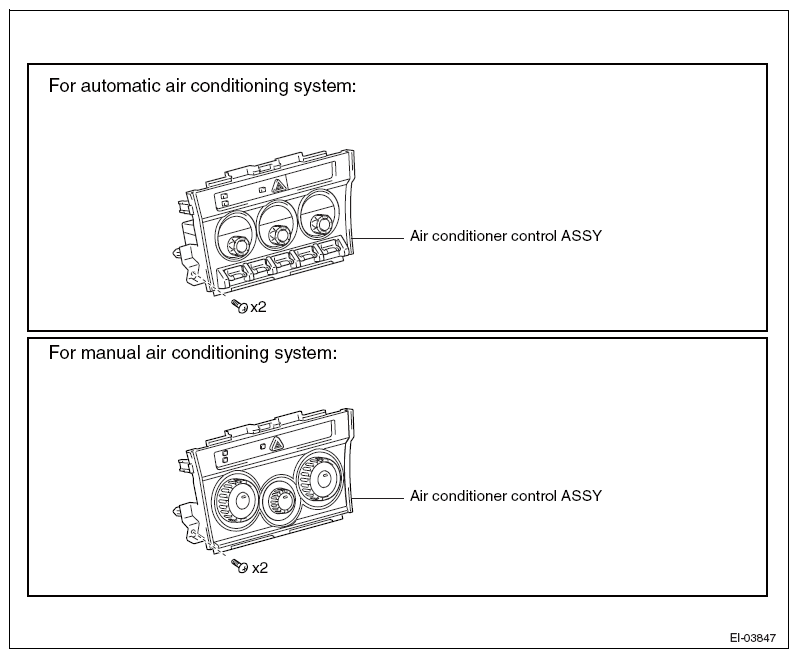

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
