Exploded View
Exploded View

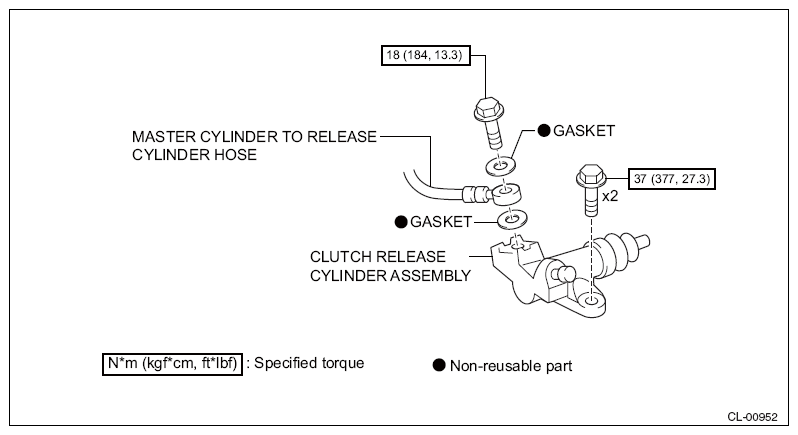

Fig 1: Exploded View Of Clutch Release Cylinder Assembly With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
