Repair and Diagnosis
>>
Transmission
>>
M/T Clutch System
>>
Clutch Master Cylinder Assembly
>>
Exploded View
Exploded View

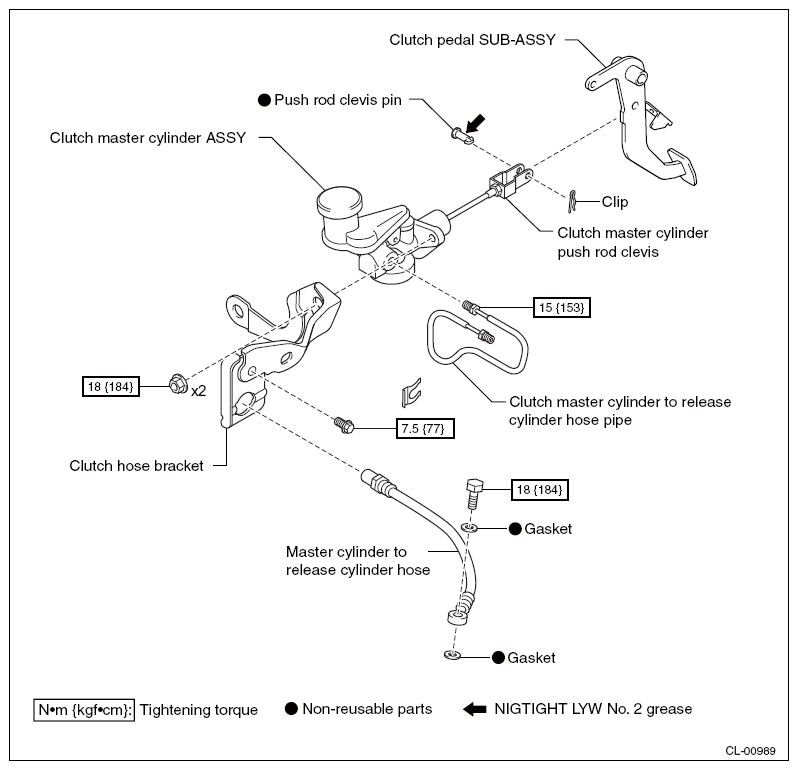

Fig 1: Exploded View Of Clutch Master Cylinder Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

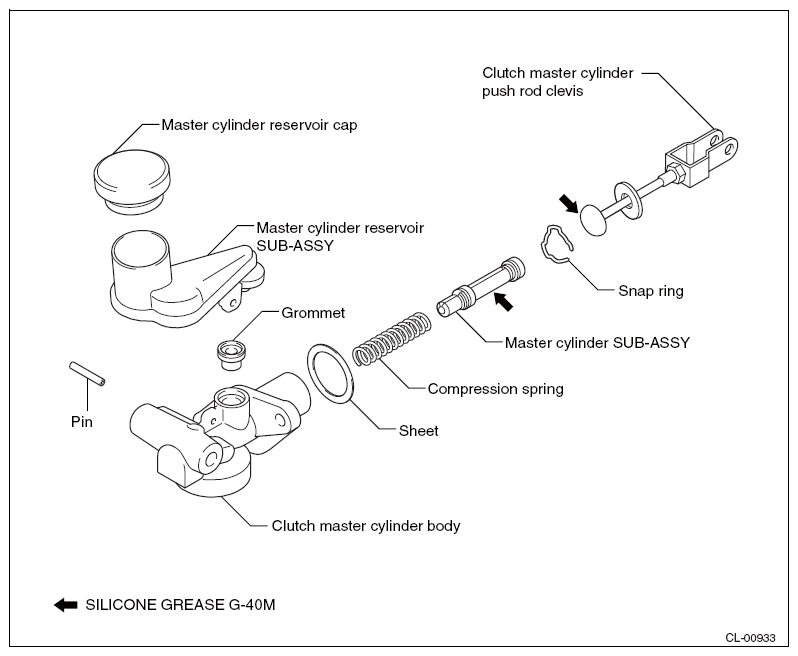

Fig 2: Exploded View Of Clutch Master Cylinder Assembly (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
