Current Data Display & Save / System Operation Check Mode

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Current Data Display & Save
    CAUTION: In the following table, the value listed in the normal condition is a reference value. Do not depend on reference value only when judging if the part is faulty.
    NOTE: By using the SSM3 and viewing [Current Data Display & Save], you can find out about the value and status related to items such as the switch, the sensor, or the actuator without having to remove the relevant parts. Because the non-intrusive inspection allows you to read the intermittent statuses or signals without interfering with parts or lines, it is very convenient. By reading the [Current Data Display & Save] information at the initial stage of troubleshooting, you can save on time for diagnosing trouble.
    1. Connect the SSM3 to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn on the SSM3.
    4. Input the following menus: [Keyless access system] →[Collation ECM] →[Current Data Display & Save]
    5. Based on the contents of the SSM3 display, read the [Current Data Display & Save].
      ENTRY & START

      Item Name Description/display range Normal value Remarks
      [Ignition] Engine switch condition / OFF or ON [OFF]: IG
      OFF [ON]: Engine switch is ON (IG).      		 Using this [Current Data Display & Save] item, identify the cause when all entry & start system/wireless functions do not operate.
      [IG = ON, immobilizer set condition established] Engine immobilizer system condition when the power supply mode is ON (IG) / Unset or Set Unset: It is not set when the engine immobilizer system is engine switch ON (IG). Or the engine immobilizer system releases the setting for 40 times after setting.
      Set: When the engine immobilizer system is set (driver' door opens/closes with engine switch ON (IG).      		 -
      [Immobilizer] The engine immobilizer system condition is judged by the collation ECM (smart key ECM ASSY) / Unset or Set Set: Engine immobilizer set (engine start prohibited) (engine switch OFF)
      Unset: Engine immobilizer unset (engine start permitted) [engine switch ON (ACC) or (IG)]      		 When [Set] is displayed, the engine start function is prohibited.
      [Master] Whether the master key ID code matches with the ID code registered in the collation ECM (smart key ECM ASSY) / Does not match, or match Does not match: The master key ID code does not match with the ID code registered in the collation ECM (smart key ECM ASSY).
      Match: The master key ID code matches with the ID code registered in the collation ECM (smart key ECM ASSY).
      • Always [Match] is displayed.
      • Without the diagnosis function
      [Sub] Whether the sub key ID code matches with the ID code registered in the collation ECM (smart key ECM ASSY) / Does not match, or match Match: The sub key ID code matches with the ID code registered in the collation ECM (smart key ECM ASSY).
      Does not match: The sub key ID code does not match with the ID code registered in the collation ECM (smart key ECM ASSY).
      • Always [Match] is displayed.
      • Without the diagnosis function
      [BCC failure] Transponder chip BCC signal condition (1) / OK or NG OK: BCC signal normal
      NG: BCC signal fault (fault in the code calculation function for key / collation ECM (smart key ECM ASSY))      		 The following may be the cause:
      • Communication error caused by the noise entering from outside (LF).
      • Defect in the electrical key transmitter SUB-ASSY or the collation ECM (smart key computer ASSY)
      [Status Failure] Transponder chip condition signal (1) / OK or NG OK: Transponder chip condition signal normal
      NG: Transponder chip condition signal fault (fault in the code calculation function for key / collation ECM (smart key ECM ASSY)      		 The following may be the cause:
      • Communication error caused by the noise entering from outside (LF).
      • Defect in the electrical key transmitter SUB-ASSY or the collation ECM (smart key computer ASSY)
      [Incorrect Encryption] Code condition between the transponder chip and collation ECM (smart key ECM ASSY) (1) / OK or NG OK: Code of the transponder chip and collation ECM (smart key ECM ASSY) matches.
      NG: Code of the transponder chip and collation ECM (smart key ECM ASSY) does not match.      		 The following may be the cause:
      • The electrical key transmitter SUB-ASSY of another vehicle is used.
      • Defect in the electrical key transmitter SUB-ASSY or the collation ECM (smart key computer ASSY)
      [Incorrect Serial No.] Vehicle serial No. (1) / OK or NG OK: Signal from the transponder chip and the vehicle serial No. outputs to the collation ECM (smart key ECM ASSY) matches.
      NG: Signal from the transponder chip and the vehicle serial No. outputs to the collation ECM (smart key ECM ASSY) does not match.      		 The following may be the cause:
      • The electrical key transmitter SUB-ASSY of another vehicle is used.
      • Defect in the electrical key transmitter SUB-ASSY or the collation ECM (smart key computer ASSY)
      [Frame error] The data condition sent from the electrical key transmitter SUB-ASSY / OK or NG OK: No problems in the data sent from the electrical key transmitter SUB-ASSY
      NG: Problems in the data sent from the electrical key transmitter SUB-ASSY
      • Always [OK] is displayed.
      • Without the diagnosis function
      [Sleep possible status] ID code box (immobilizer code ECM) is in sleep mode condition / No or Yes No: ID code box (immobilizer code ECM) does not enter to the sleep mode.
      Yes: ID code box (immobilizer code ECM) enters to the sleep mode.      		 -
      [Wake-up transmission status] ID code box (immobilizer code ECM) condition (3) / No or Yes No: ID code box (immobilizer code ECM) does not send the wake-up signal.
      Yes: ID code box (immobilizer code ECM) sends the wake-up signal.      		 -
      [EFI/EGI code reception status] The request for engine start permission sent from the collation ECM (smart key ECM ASSY) to the ID code box (immobilizer code ECM)(3) / OK or NG OK: The engine start permission request signal that the ID code box (immobilizer code ECM)(9), or collation ECM (smart key ECM ASSY)(10) receives from the collation ECM (smart key ECM ASSY)
      NG: The ID code box (immobilizer code ECM)(9), or collation ECM (smart key ECM ASSY)(10) does not receive the engine start permission request signal.      		 If [OK] is not displayed, the ECM cannot release the immobilizer setting.
      [S Code Check] (9) S code check result (4) / OK or NG OK: S code check result is normal.
      NG: S code check result is abnormal.      		 The following may be the cause:
      • The registration setting is not performed for the collation ECM (smart key ECM ASSY) or ID code box (immobilizer code ECM).
      • There are defects in the collation ECM (smart key ECM ASSY) or ID code box (immobilizer code ECM).
      [L Code Check] L code check result (5) / OK or NG OK: L code check result is normal.
      NG: L code check result is abnormal.      		 The following may be the cause:
      • The registration setting is not performed for the collation ECM (smart key ECM ASSY) or lock actuator ASSY (steering lock ECM).
      • There are defects in the collation ECM (smart key ECM ASSY) or steering lock actuator (steering lock ECM).
      [Steering lock unlock request reception status] Steering unlock command condition from the collation ECM (smart key ECM ASSY) (6) / OK or NG OK: The collation ECM (smart key ECM ASSY) sends the steering unlock command (within 10 seconds after engine switch is ON (ACC) or ON (IG), or within 10 seconds after engine starting operation)
      NG: The collation ECM (smart key ECM ASSY) does not send the steering unlock command (engine switch does not turn ON (ACC) or ON (IG), or engine starting operation cannot be performed)      		 Even when the steering lock is unlocked, if the [OK] is not displayed, the collation ECM (smart key ECM ASSY) may be defective.
      [Steering lock request reception status] Steering lock command condition from the collation ECM (smart key ECM ASSY) (7) / OK or NG OK: The collation ECM (smart key ECM ASSY) sends the steering unlock command (within 10 seconds after the door opens/closes when the engine switch is OFF with the shift lever in P(1))
      NG: The collation ECM (smart key ECM ASSY) does not send the steering unlock command (the door does not open/close when the engine switch is OFF with the shift lever in P(11))      		 Even when the steering lock condition is met, if the [OK] is not displayed, the collation ECM (smart key ECM ASSY) may be defective.
      [S Code Check(Past)] S code check result (past) / OK or NG (past) OK: Confirmation operation finished (past).
      NG (past): Confirmation operation has not finished (past).      		 -
      [L Code Check(Past)] L code check result (past) / OK or NG (past) OK: Confirmation operation finished (past).
      NG (past): Confirmation operation has not finished (past).      		 -
      [Engine start permission request reception status] Recognition information that is sent to the ID code box (immobilizer code ECM) from ECM, when the ECM receives the engine start permission signal from the ID code box (immobilizer code ECM)(8). / OK or NG OK: The ID code box (immobilizer code ECM)(9), or collation ECM (smart key ECM ASSY)(10) receives the signal sent from ECM in order to release the engine immobilizer setting.
      NG: The ID code box (immobilizer code ECM)(9), or collation ECM (smart key ECM ASSY)(10) does not receive the signal sent from ECM in order to release the engine immobilizer setting.      		 -
      [EFI/EGI Communication] Communication status to release the immobilizer setting between the collation ECM (smart key ECM ASSY) and ECM / NG or OK NG: Communication to release the immobilizer setting between the collation ECM (smart key ECM ASSY) and ECM does not start.
      OK: Communication to release the immobilizer setting between the collation ECM (smart key ECM ASSY) and ECM starts.      		 Even when the condition to release the immobilizer setting is met, if the [NG] is displayed in the items and [OK] is displayed in the items in the engine start request, ECM may be defective. If the engine cannot be started, use this [Current Data Display & Save] while the troubleshooting is performed.
      (1) This indicates that there is a problem in the communication type between the electrical key transmitter SUB-ASSY and the collation ECM (smart key computer ASSY). Possible fault causes include the external radio waves, or the faulty electrical key transmitter SUB-ASSY, or collation ECM (smart key ECM ASSY), use of other vehicle electrical key transmitter SUB-ASSY.
      (2) This indicates that the wake-up signal communication is possible. ([Yes] indicates that the LIN communication signal is sent to start the confirmation operation.) If the steering lock motor operates normally and IGE ON signal is received (steering lock work request), or the communication occurs between the ID code box (immobilizer code ECM)*9, or collation ECM (smart key ECM ASSY)*10 and ECM, the displayed item is changed to [Yes].
      (3) This indicates that the engine start permission request signal (EGST) sent from ECM (smart key ECM ASSY) is received by the ID code box (immobilizer code ECM)*9 or the collation ECM (smart key ECM ASSY)*10.
      (4) This indicates the collation results of the collation code for the collation ECM (smart key ECM ASSY) and ID code box (immobilizer code ECM) collation code.
      (5) This indicates the collation results of the collation code for the steering lock actuator ASSY (steering lock ECM) and the ID code box (immobilizer code ECM) *9 or collation ECM (smart key ECM ASSY)*10.

      • When the steering lock actuator ASSY (steering lock ECM) receives the unlock request from the collation ECM (smart key ECM ASSY), the confirmation operation for ID code box (immobilizer code ECM) L code is performed. When the L code is matched, the steering lock actuator ASSY (steering lock ECM) unlocks the steering. But when the S code check result is not matched, the steering lock does not unlock.

      (6) The collation ECM (smart key ECM ASSY) outputs the steering lock/unlock request for 10 seconds after the engine switch is ON (ACC) or ON (IG) or the engine start operation has been performed.
      (7) The collation ECM (smart key ECM ASSY) outputs the steering lock request for 10 seconds after the engine switch is OFF, or after the door is opened with the shift lever positioned in P.*11.
      (8) This indicates that the ID code box (immobilizer code ECM)*9, or collation ECM (smart key ECM ASSY)*10 receives the confirmation information from the ECM. The display changes to [OK] if the ECM can send the information.
      (9) The ID code box is included.
      (10) The ID code box is not included.
      (11) With automatic transmission
      1. Refer to the items in following [Current Data Display & Save] for the actual vehicle data.

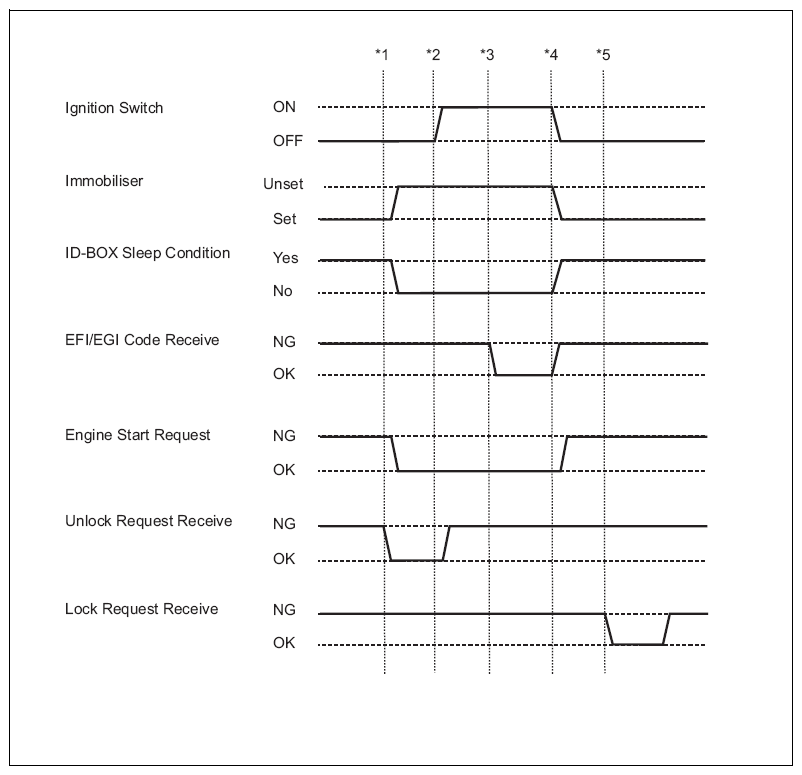

        Fig 1: Engine Immobilizer System Blinking Pattern
        G08557522Courtesy of SUBARU OF AMERICA, INC.
      NOTE: With the IG OFF and the shift lever in P*6, perform the following operation to confirm the power supply mode.
      *1: Without depressing the brake pedal*6 or clutch pedal*7, push the engine switch to confirm the power supply mode is turned ON (ACC).
      *2: Without depressing the brake pedal*6 or clutch pedal*7, push the engine switch to confirm the power supply mode turns to ON (IG).
      *3: Depress the brake pedal*6 or clutch pedal*7 (stop light switch*6 or clutch start switch*7 turns to ON).
      *4: Push the engine switch to confirm the power supply mode turns to ON.
      *5: Open the door (the steering lock operation starts when the door opens).
      *6: With automatic transmission
      *7: for manual transmission
  2. System Operation Check Mode
    NOTE: By performing the [System Operation Check Mode] using the SSM3, relay, VSV, actuator and other devices can be operated without removing parts. This type of non-intrusive function inspection is very useful because the intermittent operation is possible without interference with parts or wiring. Diagnostic time can be reduced by performing the [System Operation Check Mode] at an early stage of troubleshooting. The information of [Current Data Display & Save] can be displayed while performing the [System Operation Check Mode].
    1. Connect the SSM3 to the DLC3.
    2. Turn IG SW to ON.
    3. Turn on the SSM3.
    4. Enter the following menu items: [Integ. unit mode] →[Work Support] →[System Operation Check Mode].
    5. Based on the information displayed by the SSM3, execute [System Operation Check Mode].
      MAIN BODY

      Item Name Description/display range Normal value Remarks
      [Security Indicator] Security indicator light ON/OFF -
