Partial Engine Assembly (FA20): Components

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

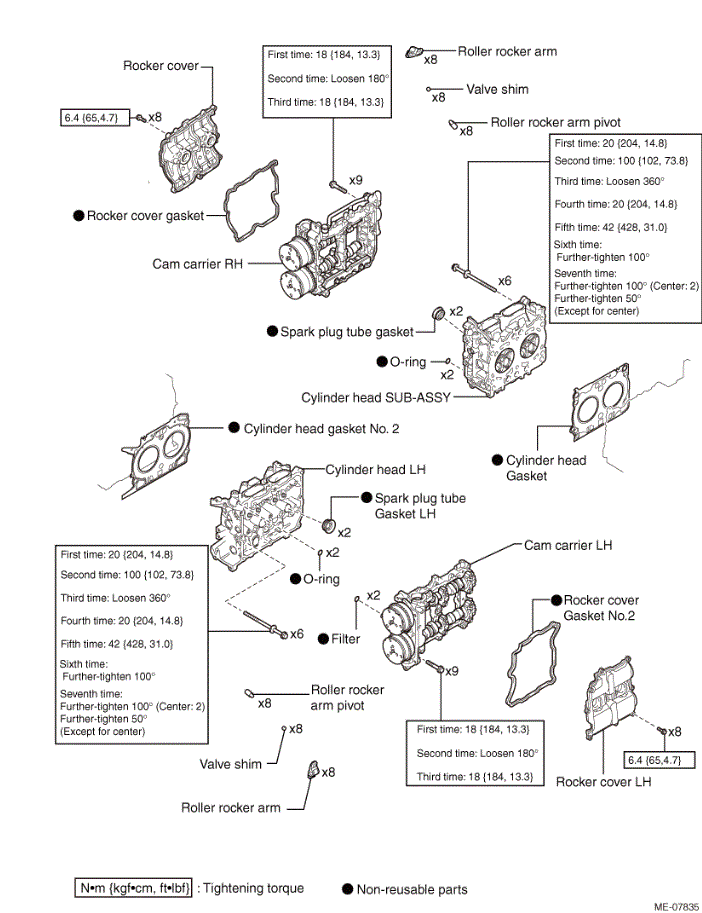

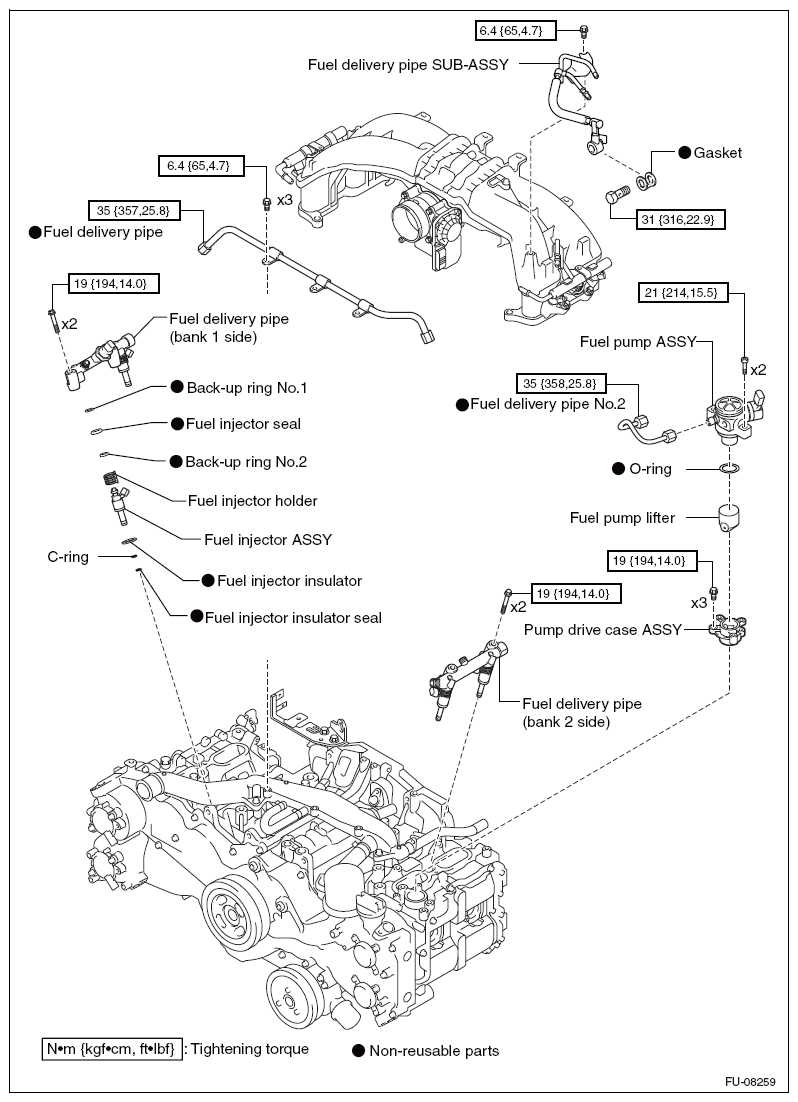

Fig 1: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (1 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

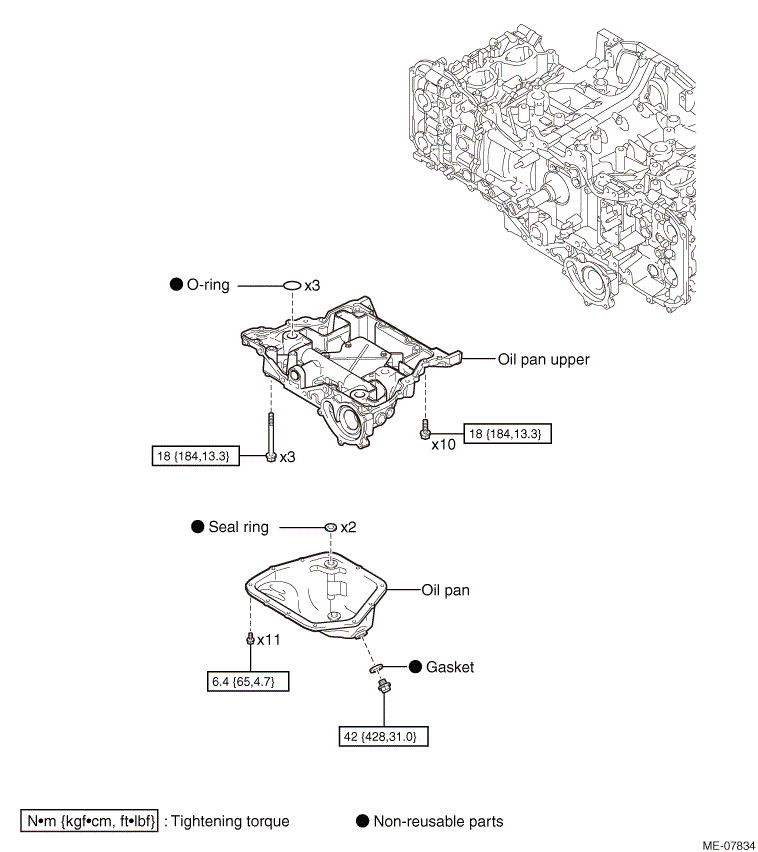

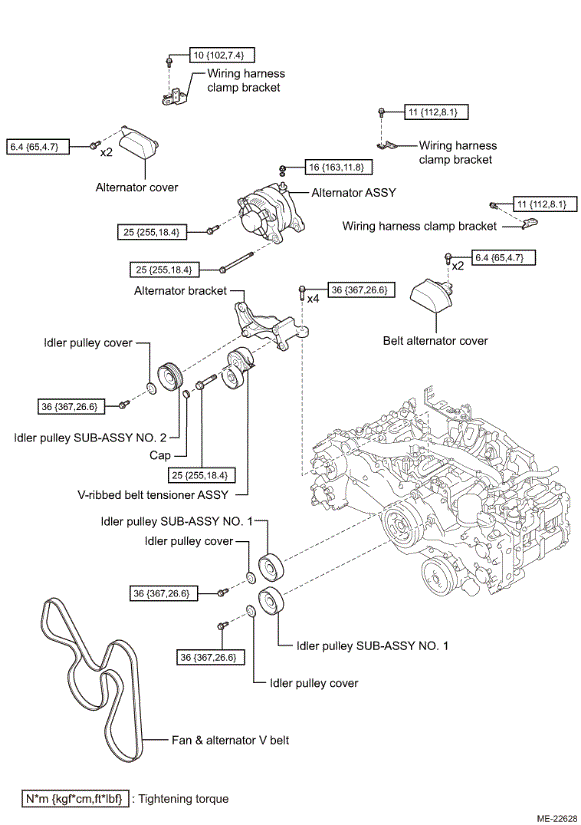

Fig 2: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (2 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

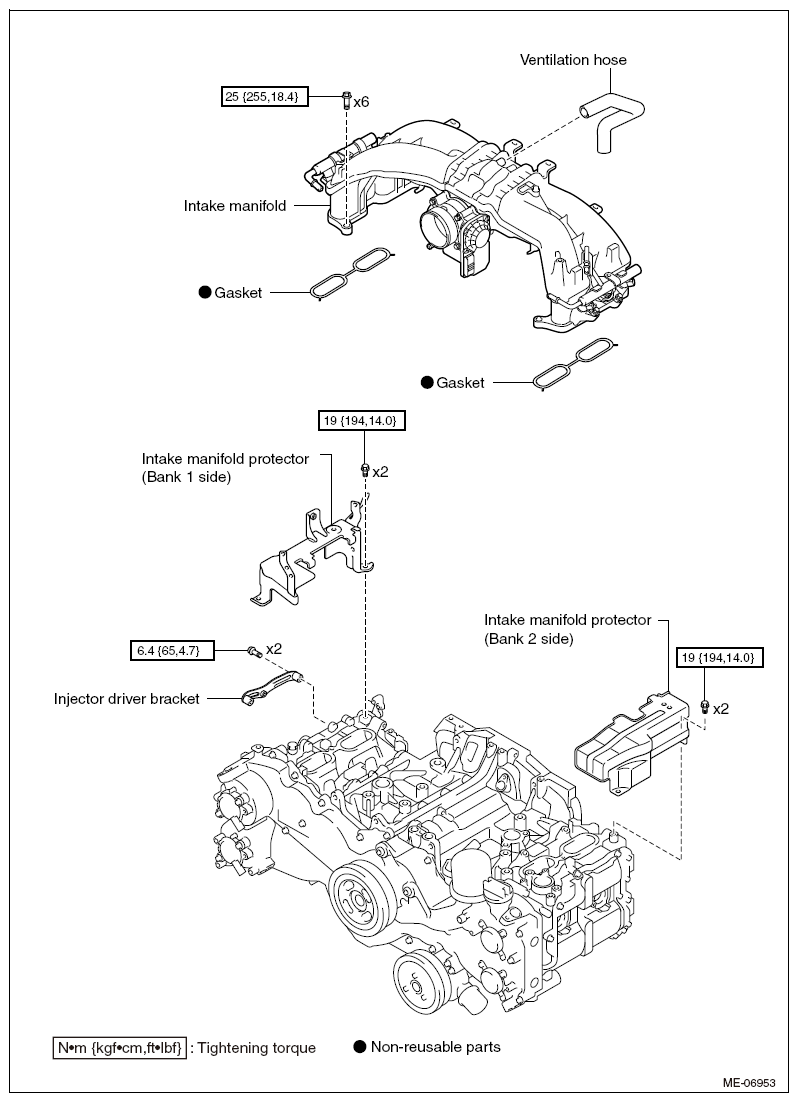

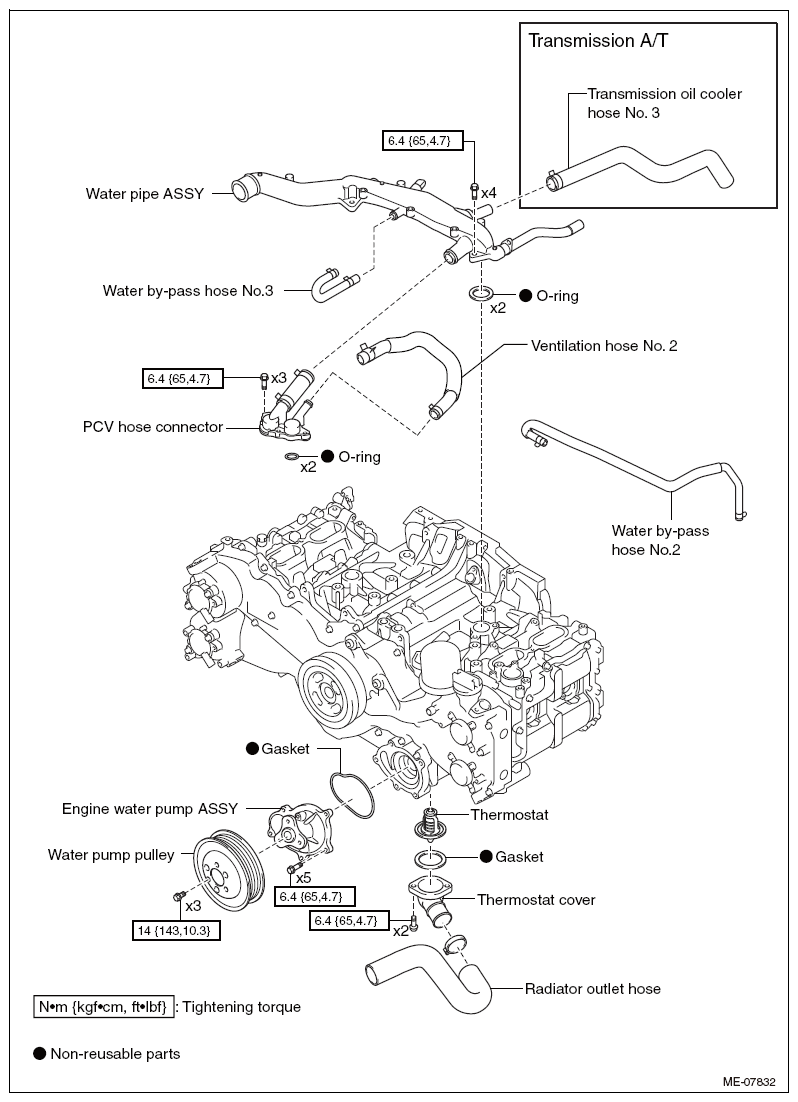

Fig 3: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (3 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

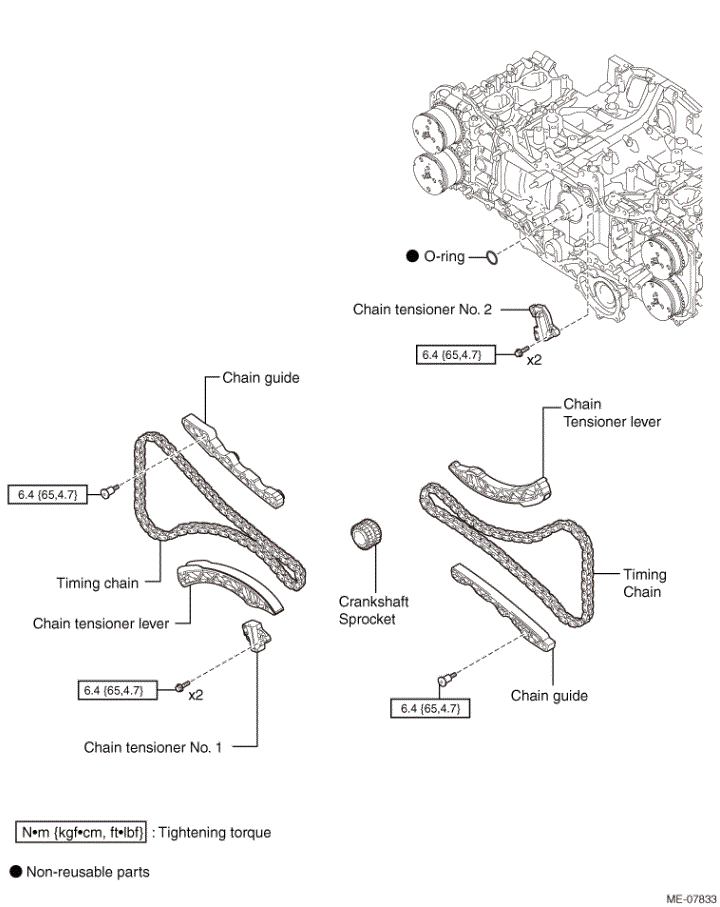

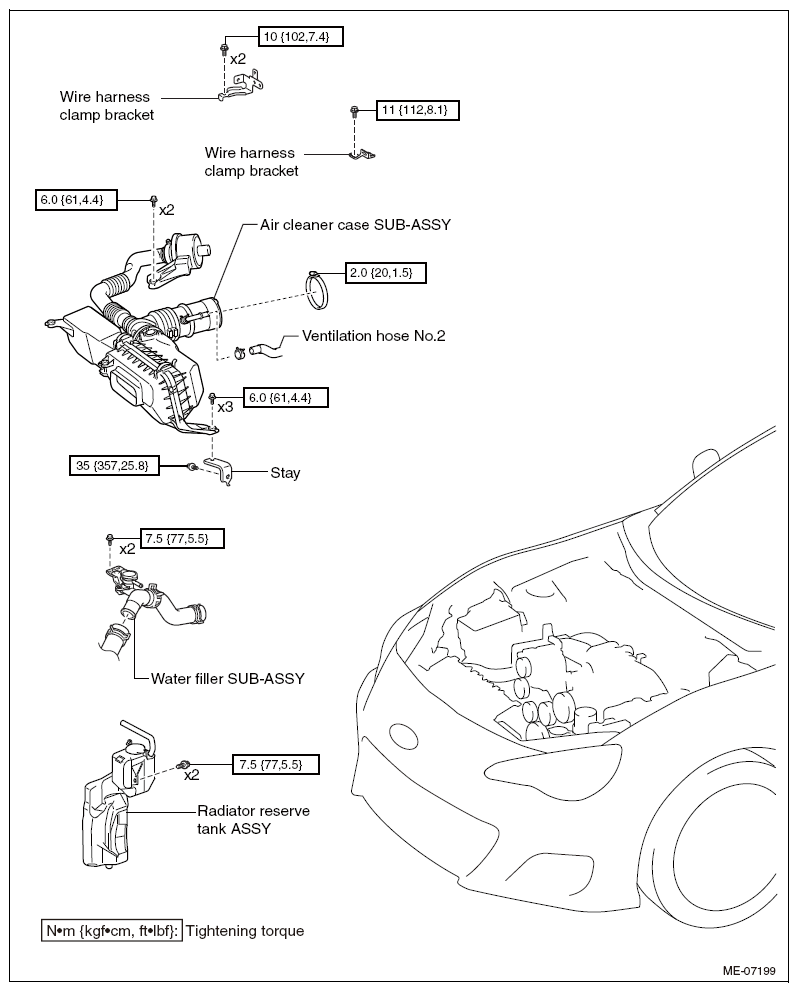

Fig 4: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (4 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

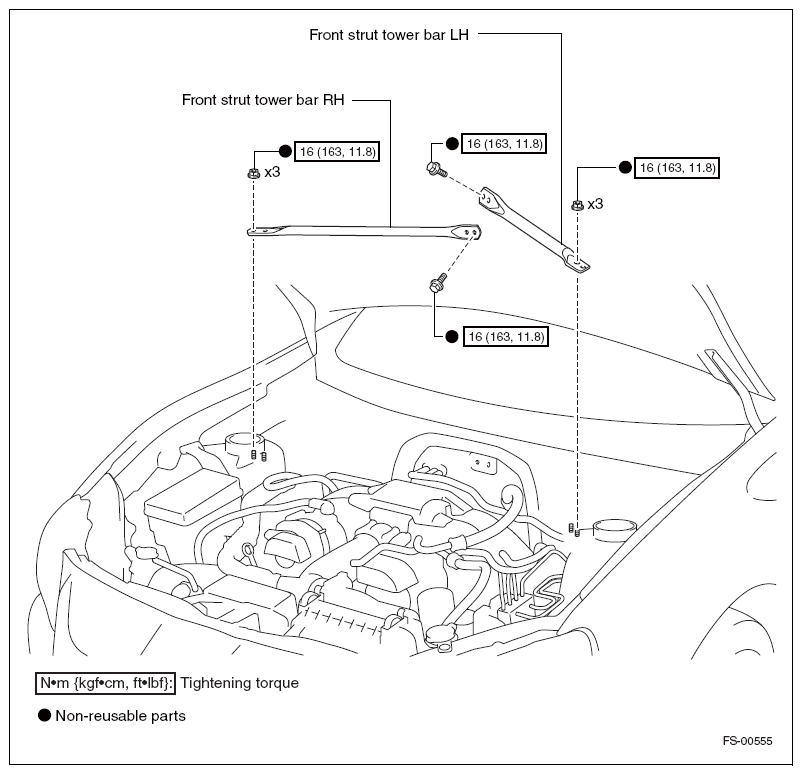

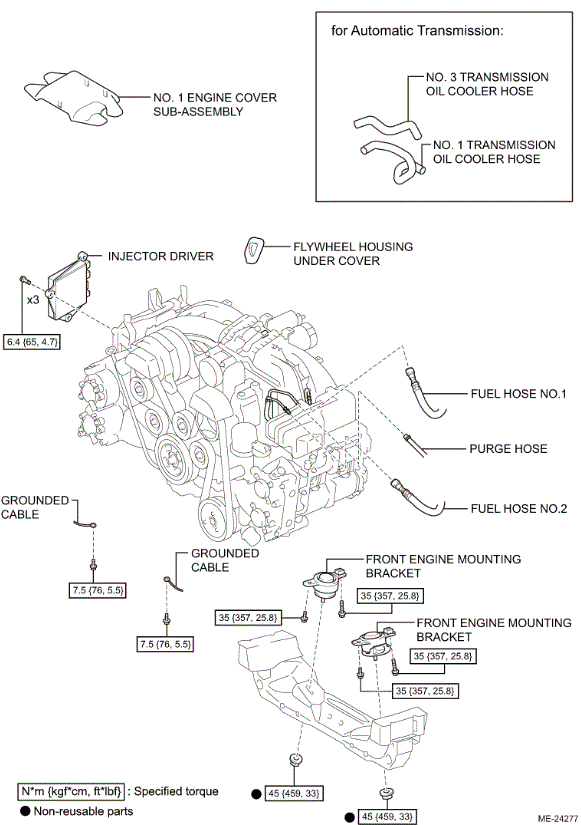

Fig 5: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (5 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

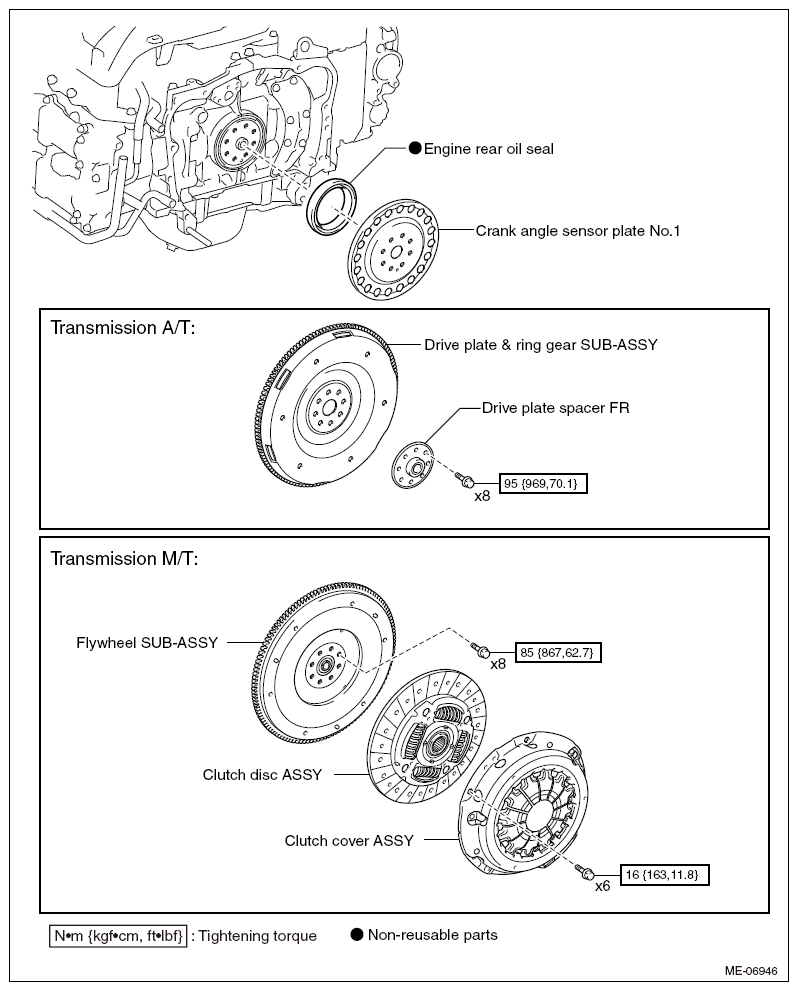

Fig 6: Engine Rear Oil Seal (FA20) Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

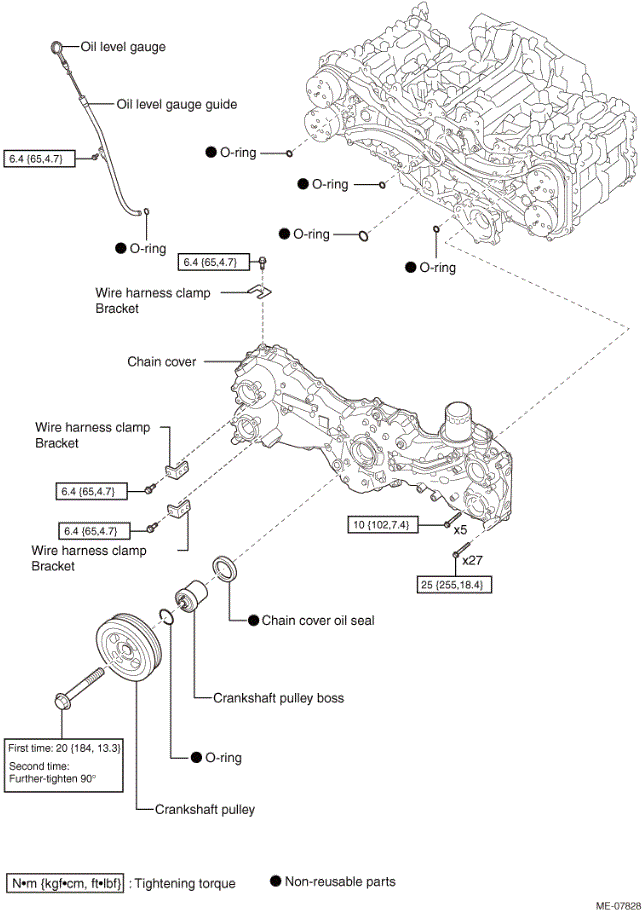

Fig 7: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (7 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

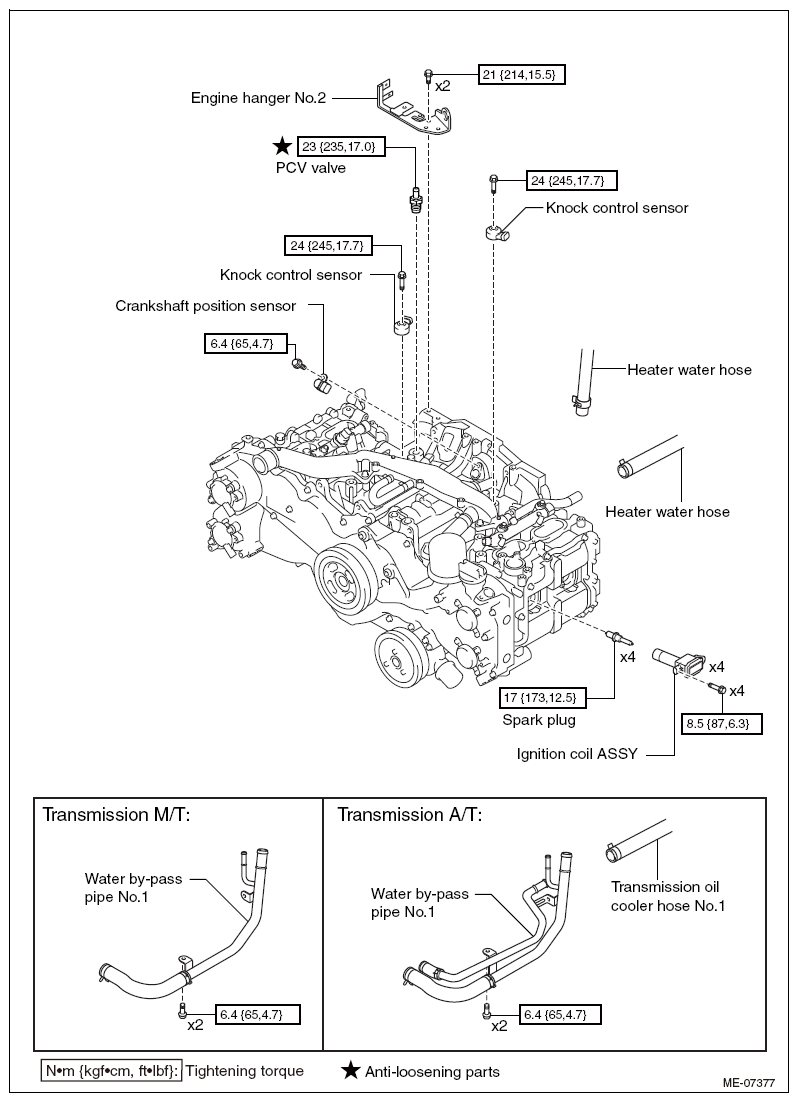

Fig 8: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (8 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (9 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (10 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (11 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (12 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Camshaft (FA20) Replacement Components With Torque Specifications (5 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (14 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

Fig 15: Timing Chain (FA20) Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Fig 16: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (16 Of 17)

Courtesy of SUBARU OF AMERICA, INC.

Fig 17: Partial Engine Assembly Replacement Components With Torque Specifications (FA20) (17 Of 17)

Courtesy of SUBARU OF AMERICA, INC.
