Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Inspection of the visor ASSY RH

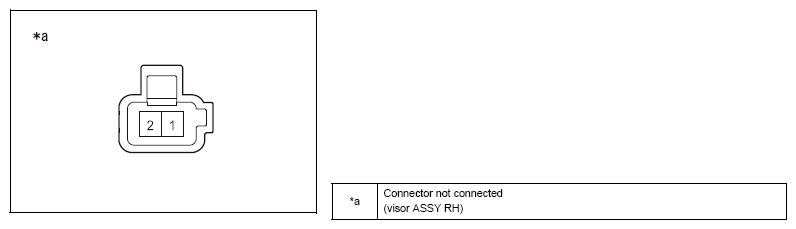

- Measure the resistance between the connector terminals when the visor ASSY RH (vanity light switch) is operated.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
Mirror cover closed |
10 kΩ or more |
| 1 - 2 |
Mirror cover opened |
Less than 1 Ω |
