Vanity Light: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The procedures described below are for the RH side. Perform the same procedures for the LH side.
  1. Installation of the vanity light bulb
    1. Install the vanity light bulb to the visor ASSY RH.
  2. Installation of the vanity light lens
    1. Engage the claws and install the vanity light lens.

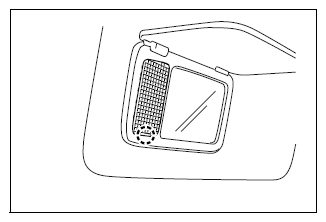

      Fig 1: Installing Vanity Light Lens
      G09492421
  3. Installation of visor ASSY RH
    1. Connect the connector.
    2. Place the visor ASSY RH on the hook.
    3. With the 2 screws, install the visor ASSY RH.
