Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

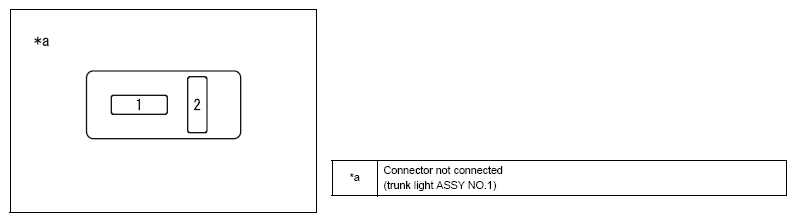

- Inspection of the trunk light ASSY NO.1
- Check the illumination condition when battery voltage is applied between the connector terminals.
Criteria
| Inspection terminals |
Inspection conditions |
Criteria |
| 1 - 2 |
Battery positive →1
Battery ground →2 |
Light turns on. |
NOTE:
Perform the inspection using a properly functioning bulb.
