Trunk Room Light: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of the trunk light bulb
    1. Install the trunk light valve.
  2. Installation of the trunk light lens
    1. Engage two claws and install the trunk light lens.
  3. Installation of the trunk light ASSY NO.1
    1. Connect the connector.
    2. Rotate the trunk light ASSY NO.1 as shown in the figure, and install the trunk light ASSY NO.1.

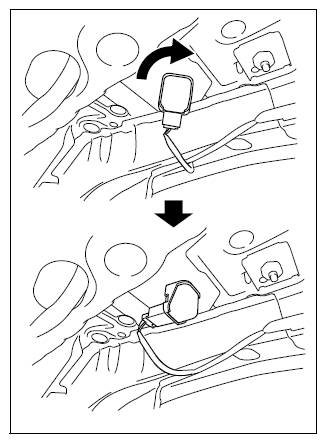

      Fig 1: Installing Trunk Light Assembly No. 1
      G09492280
