Personal Map Light: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Removal of the map light ASSY
1. Release the 2 tabs.

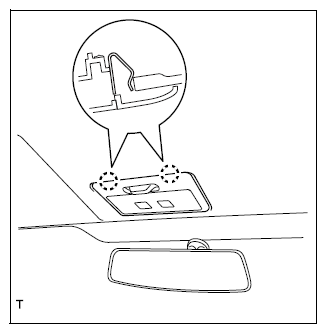

  Fig 1: Identifying Map Light Assembly Tabs
2. Release two guides and disconnect the map light ASSY.

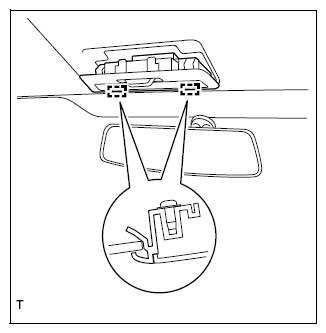

  Fig 2: Disconnecting Map Light Assembly
3. Disconnect the connector and remove the map light ASSY.

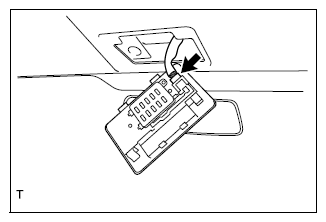

  Fig 3: Map Light Assembly Connector
Removal of the map light lens NO.1
1. Release two claws by using a fine flat tip screwdriver wrapped with protective tape, and remove the map light lens NO.1.

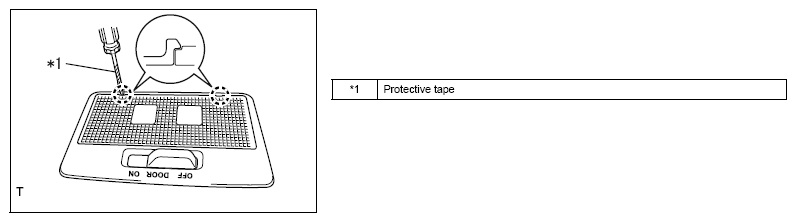

  Fig 4: Removing Map Light Lens No.1
Removal of the map light bulb
1. Remove the map light bulb.
