Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Inspection of the transponder key amplifier
- Light inspection

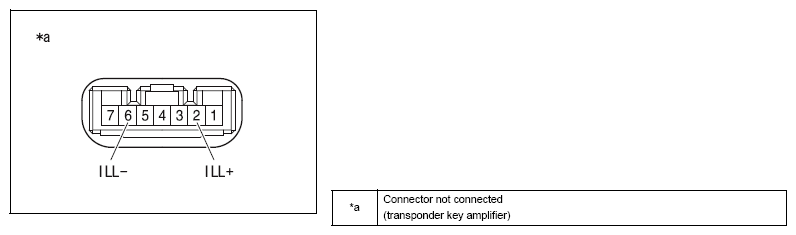

- Inspect if the light turns on when battery voltage is applied to each connector terminal.
Criteria
| Battery connection |
Criteria |
Battery positive terminal →2 (ILL+)
Battery ground terminal →6 (ILL-) |
Light turns on. |
