Washer Motor: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

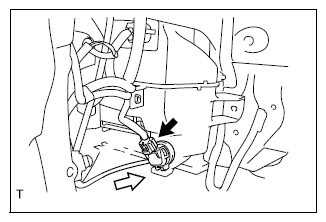

Fig 1: Locating Connector And Windshield Washer Motor & Pump assembly

Courtesy of SUBARU OF AMERICA, INC.

Installation of the windshield washer motor & pump ASSY
1. Replace the motor packing with a new one, and install the windshield washer motor & pump ASSY.
2. Connect the connector.
3. Connect the washer hose.
Refilling washer fluid
1. Refill the washer fluid.
Installation of the front mud guard LH
1. Using 18 clips, install the front mud guard LH.
2. Install a new grommet.
3. Install the bolt.
  Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}
Installation of the front tire LH
Standard value: T=120N.m {1224kgf.cm} {88.5ft.lbf}
