Combination Meter ASSY: Assembly

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Installation of the combination meter cover
1. Engage six claws and install the combination meter cover.

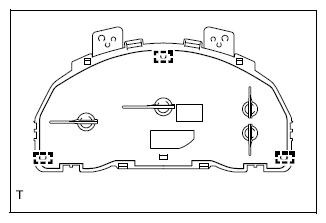

  Fig 1: Identifying Combination Meter Cover Mounting Claws
  Courtesy of SUBARU OF AMERICA, INC.

  CAUTION: When installing the combination meter cover, make sure that the clock faces are secured to the positioners

  Fig 2: Identifying Combination Meter Cover Clockfaces
  Courtesy of SUBARU OF AMERICA, INC.
Installation of the combination meter glass
1. Engage seven claws and install the combination meter glass.

  Fig 3: Identifying Combination Meter Glass Mounting Claws
  Courtesy of SUBARU OF AMERICA, INC.
