Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the speaker ASSY RR.CAUTION: Do not touch the speaker ASSY RR cone.
- When installing the speaker, always confirm that there are no abnormalities such as looseness or excessive play.
- Check that no foreign objects have entered into the speaker, and that there are no abnormalities such cone paper tearing.
- Resistance check
- Disconnect the speaker ASSY RR connector.

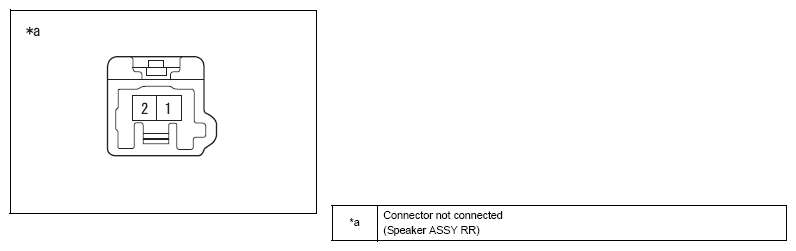

- Measure the resistance between connector terminals.
RESISTANCEInspection terminals Inspection conditions Standard value 1 - 2 Always 3.7 - 4.7 Ω NOTE: This inspection is carried out without removing the speaker ASSY RR.
