Unit Inspection

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the speaker ASSY FR No. 2.

When installing the speaker, always confirm that there are no abnormalities such as looseness or excessive play.
Check that no foreign objects have entered into the speaker, and that there are no abnormalities such cone paper tearing.

Resistance check

Measure the resistance between the terminals.

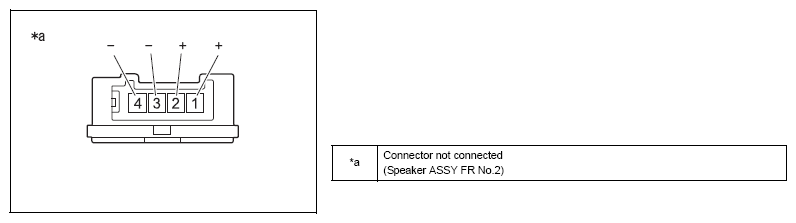

Fig 1: Identifying Speaker ASSY FR No. 2 Terminals

Courtesy of SUBARU OF AMERICA, INC.

RESISTANCE

Inspection terminals	Inspection conditions	Standard value
1(+) - 2(+)	Always	2.8 to 3.8Ω
3(-) - 4(-)	Always	2.8 to 3.8Ω

Inspect the speaker ASSY FR No. 3.

Check that no foreign objects have entered into the speaker ASSY FR No. 3, confirm that the cone is not damaged and there are no other abnormalities.

Measure the speaker ASSY FR No. 3 resistance.

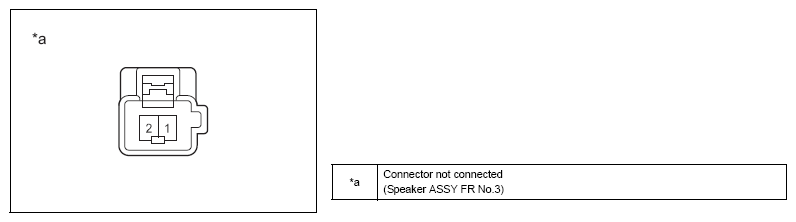

Fig 2: Identifying Speaker ASSY FR No. 3 Terminals

Courtesy of SUBARU OF AMERICA, INC.

RESISTANCE

Inspection terminals	Inspection conditions	Standard value
1 - 2	Always	3.7 - 4.7Ω

NOTE: This inspection is carried out without removing the speaker ASSY FR No. 3.
