Unit Inspection

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the speaker ASSY FR No. 1.

CAUTION: Do not touch the speaker ASSY FR No. 1 cone.

When installing the speaker ASSY FR No. 1, always confirm that there are no abnormalities such as looseness or excessive play.
Check that no foreign objects have entered into the speaker ASSY FR No. 1, and that there are no abnormalities such tearing or damage to the cone paper.
Disconnect the speaker ASSY FR No. 1 connector.

Measure the resistance between the terminals.

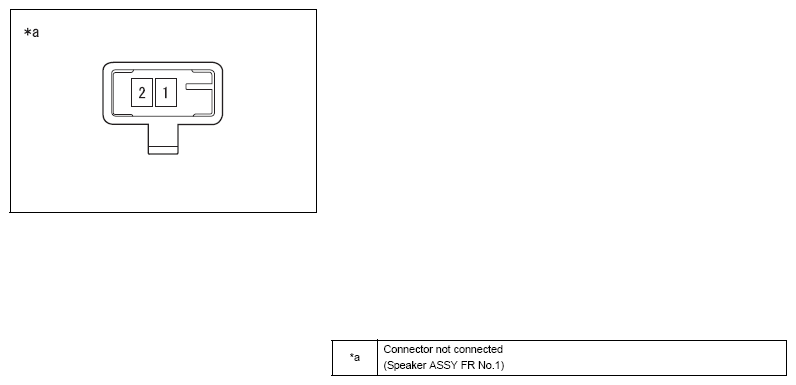

Fig 1: Identifying Speaker ASSY FR No. 1 Terminals 1 And 2

Courtesy of SUBARU OF AMERICA, INC.

RESISTANCE

Inspection terminals	Inspection conditions	Standard value
1 - 2	Always	2.6 to 3.2 Ω

NOTE: This inspection is carried out without removing the speaker ASSY FR No. 1.
