Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Inspection of the H-LP relay
- Measure the resistance between connector terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 3 - 5 |
When battery voltage is not applied between terminals 1 and 2. |
10 kΩ or more |
| When battery voltage is applied between terminals 1 and 2. |
Less than 1 Ω |
Courtesy of SUBARU OF AMERICA, INC.
- Inspection of the DIM relay
- Measure the resistance between connector terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 3 - 5 |
When battery voltage is not applied between terminals 1 and 2. |
10 kΩ or more |
| When battery voltage is applied between terminals 1 and 2. |
Less than 1 Ω |
Courtesy of SUBARU OF AMERICA, INC.

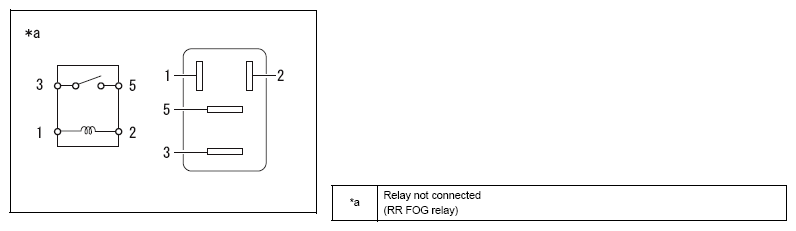

- Inspection of the RR FOG relay
- Measure the resistance between connector terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 3 - 5 |
When battery voltage is not applied between terminals 1 and 2. |
10 kΩ or more |
| When battery voltage is applied between terminals 1 and 2. |
Less than 1 Ω |
Courtesy of SUBARU OF AMERICA, INC.
