Rear Combination Light: Assembly

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following procedure is for LH side. Perform the same procedures for the RH and LH side.

Installation of the rear combination light socket & wiring SUB-ASSY LH
1. Fit in the 2 clamps, and install the rear combination light socket & wiring SUB-ASSY LH.

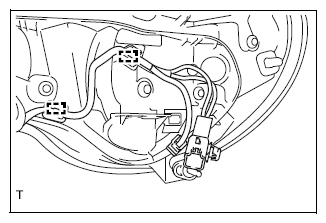

  Fig 1: Locating Wiring Harness Clamps
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the connector clamp and the connector.

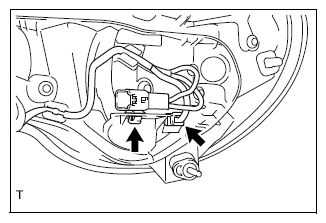

  Fig 2: Identifying Connector Clamp
  Courtesy of SUBARU OF AMERICA, INC.
INSTALL REAR SIDE MARKER LIGHT BULB
1. Connect the connector.
2. Engage the clamp.
3. Install the side marker light bulb to the rear combination light socket and wire sub-assembly.

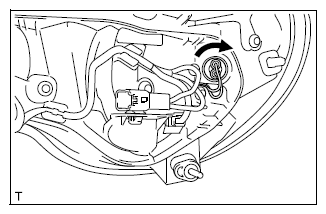

  Fig 3: Installing Side Marker Light Bulb Socket
  Courtesy of SUBARU OF AMERICA, INC.
Installation of the rear turn signal light bulb
1. Install the rear turn signal light bulb on the rear combination light socket & wiring SUB-ASSY LH.
2. Turn in the direction of the arrow in the figure, and install the rear turn signal light bulb as a unit with the rear combination light socket & wiring SUB-ASSY LH.

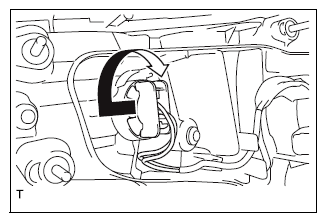

  Fig 4: Installing Rear Turn Signal Light Bulb
  Courtesy of SUBARU OF AMERICA, INC.
Installation of the tail light (rear combination light) gasket LH
1. Install a new tail light (rear combination light) gasket LH.

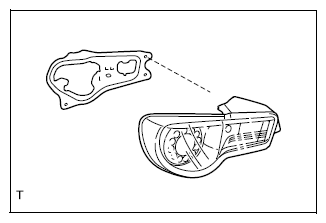

  Fig 5: Identifying Tail Light (Rear Combination Light) Gasket
  Courtesy of SUBARU OF AMERICA, INC.
