Headlight Leveling Switch: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of instrument side panel LH (Refer to INSTRUMENT PANEL LWR )
  2. Removal of instrument panel under cover SUB-ASSY NO. 1 (Refer to LIGHT CONTROL RHEOSTAT )
  3. Removal of the headlight leveling switch
    1. Release the 2 tabs, and remove the headlight leveling switch.

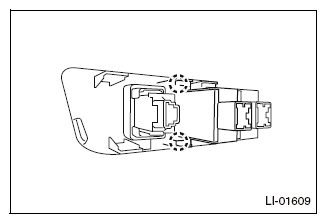

      Fig 1: Headlight Leveling Switch Tabs
      G09492399Courtesy of SUBARU OF AMERICA, INC.
