Back-Up Light: Disassembly

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of the back-up light bulb
    1. Turn in the direction of the arrow in the figure, and remove the back-up light bulbs as a unit with the back-up light sockets & wiring.
    2. Remove the back-up light bulbs from the back-up light sockets & wiring.
      NOTE: Remove on the LH side using the same steps as the RH side.

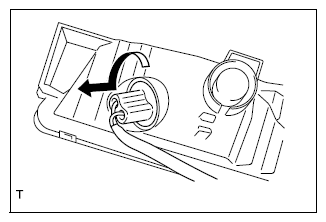

      Fig 1: Removing Back-Up Light Socket
      G09492371Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of the back-up light sockets & wiring
    1. Release the 3 clamps in the figure, and remove the back-up light sockets & wiring.

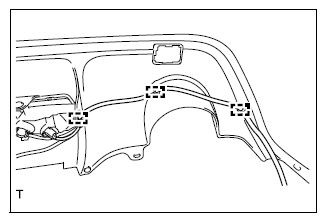

      Fig 2: Locating Clamps
      G09492372Courtesy of SUBARU OF AMERICA, INC.
