Back-Up Light: Assembly

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of the back-up light sockets & wiring
    1. Fit in the 3 clamps, and install the back-up light sockets & wiring.

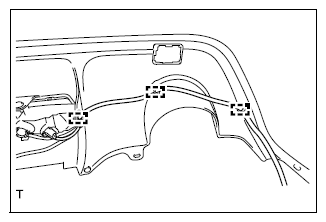

      Fig 1: Locating Harness Clamps
      G09492373Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of the back-up light bulbs
    1. Install the back-up light bulbs on the back-up light sockets & wiring.
    2. Turn in the direction of the arrow in the figure, and install the backup light bulbs as a unit with the back-up light sockets & wiring.
      NOTE: Install on the LH side using the same steps as the RH side.

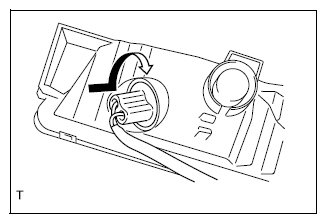

      Fig 2: Installing Back-Up Light Socket
      G09492374Courtesy of SUBARU OF AMERICA, INC.
