Starter Assembly (Fa20): Installation

1. Install the starter assembly to the transmission and temporarily tighten the upper mounting bolt.
   Fig 1: Locating Starter Assembly Upper Mounting Bolt

   Courtesy of SUBARU OF AMERICA, INC.
2. Lower mounting bolt tightening
   1. Tighten the lower mounting bolt A.

      Standard value: 50 N.m {510 kgf.cm} {36.9 ft.lbf}

   2. Tighten the ground cable fixing bolt B.

      Standard value: 14 N.m {143 kgf.cm} {10.3 ft.lbf}

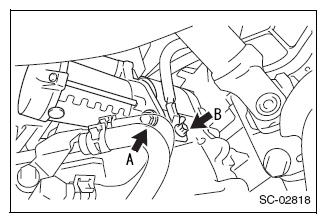

      Fig 2: Locating Starter Assembly Lower Mounting Bolt And Ground Cable Bolt

      Courtesy of SUBARU OF AMERICA, INC.
3. Tighten the upper mounting bolt of starter assembly using the SST.

   SST 18283AA000

   Standard value: Specified tightening torque

   T=50N.m {510kgf.cm} {36.9ft.lbf}

   When using the SST, calculate the torque using the following formula.

   Formula: T2 = L2/(L1 + L2) XT1

   T1	50 N.m
   T2	Tightening torque
   L1	Length of SST [0.085 m]
   L2	Torque wrench length [m]

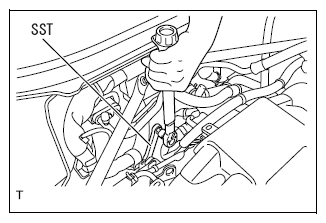

   Fig 3: Tightening Starter Assembly Upper Mounting Bolt Using SST

   Courtesy of SUBARU OF AMERICA, INC.
   NOTE:

   • This torque value is valid when the SST and torque wrench are aligned on a line.
   • Attach the SST and torque wrench so that they are aligned on a line.
4. Install the wiring harness clamp.
5. Connect the connector and terminal to the starter assembly.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
