Ignition (Starter) Switch Assembly: Removal

  1. Removal of instrument panel under cover sub-assembly No. 1 (Refer to LIGHT CONTROL RHEOSTAT )
  2. Steering column cover lower removal (Refer to INSTALLATION )
  3. Steering column cover upper removal (Refer to INSTALLATION )
  4. Ignition/starter switch assembly removal
    1. Disconnect the connector.
    2. Remove the two screws and remove the ignition/starter switch assembly.

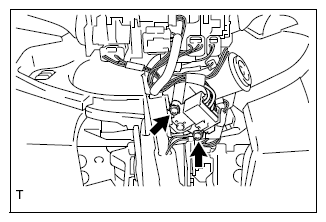

      Fig 1: Locating Ignition/Starter Switch Assembly Screws
      G10214140Courtesy of SUBARU OF AMERICA, INC.
