NEUTRAL START SWITCH Assembly: Adjustment

Adjustment of neutral start switch Assembly
1. Set the select lever to N position.
2. Loosen the set bolt on the neutral start switch Assembly.

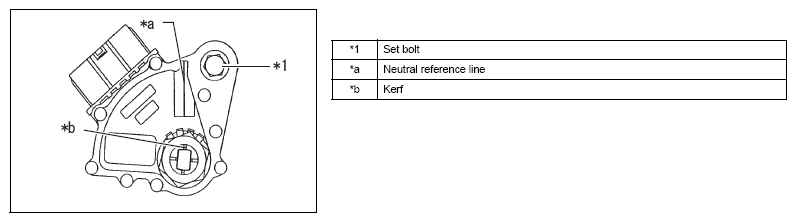

  Fig 1: Identifying Set Bolt On Neutral Start Switch Assembly
  Courtesy of SUBARU OF AMERICA, INC.
3. Move the neutral start switch Assembly to align the neutral reference line and the kerf.
4. Tighten the set bolt.
  Standard value: T=13N.m {130kgf.cm} {9.6ft.lbf}
5. After the adjustment, check the neutral start switch Assembly.
  (Refer to ADJUSTMENT )
