Circuit figure

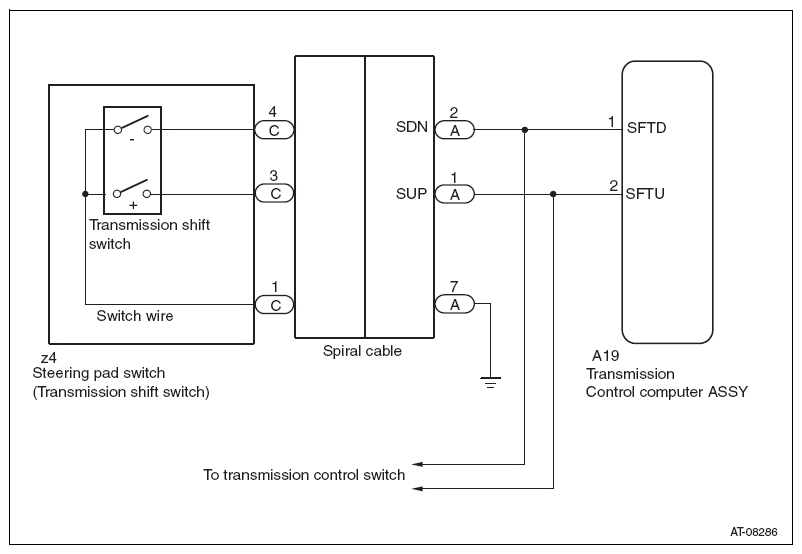

Fig 1: Paddle Shift Switch System Circuit Diagram

G10214219

Courtesy of SUBARU OF AMERICA, INC.
