Steering Wheel: Removal

  1. Correct handling and precautions for operation
    WARNING: As this maintenance procedure may have an effect on the SRS airbag system, be sure to check the SRS airbag system precautions before commencing work. (Refer to SRS AIRBAG SYSTEM )
  2. Confirm that the front tires are in the straight-ahead position.
  3. Disconnection of the battery ground terminal
    WARNING: As the airbag and pretensioner system is equipped with a back-up power supply, if you start work within 60 seconds of disconnecting the battery ground terminal, the airbag may accidentally deploy.
    CAUTION: To prevent damage to the moldings, completely wind down both the driver's and passenger's door windows.
  4. Remove the driver's airbag module. (Refer to DRIVER SIDE AIR BAG MODULE )
  5. Removal of the steering wheel assembly
    1. Undo the nut and place an alignment mark over the steering wheel assembly and steering column assembly.

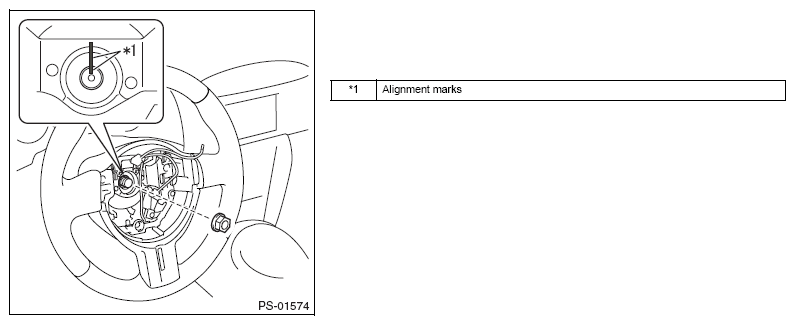

      Fig 1: Locating Alignment Mark On Steering Wheel Assembly And Steering Column Assembly
      G10215772Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect each connector from the steering roll connector.
    3. Use a steering wheel puller to remove the steering wheel assembly.
  6. Remove the transmission shift switch (with paddle shifter). (Refer to TRANSMISSION SHIFT SWITCH )
  7. Remove the cruise control main switch (Refer to CRUISE CONTROL MAIN SWITCH )
