Front Brake: Assembly

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily tightening of front disc brake bleeder plug
    1. Temporarily tighten the front disc brake bleeder plug to the front disc brake cylinder ASSY LH.
  2. Installation of front disc brake bleeder plug cap
    1. Install the front disc brake bleeder plug cap to the front disc brake bleeder plug.
  3. Installation of piston seal
    1. Apply rubber grease all around 2 new piston seals.
      Fig 1: Installing Piston Seals To Disc Brake Cylinder Grooves
      G08557075Courtesy of SUBARU OF AMERICA, INC.
    2. Securely install 2 piston seals to the disc brake cylinder grooves.
  4. Installation of front disc brake piston
    1. Apply rubber grease to a new cylinder boot.

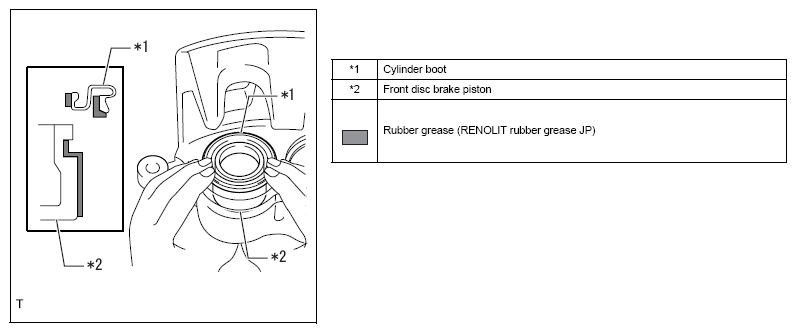

      Fig 2: Installing Cylinder Boot To Front Disc Brake Piston Groove
      G08557076Courtesy of SUBARU OF AMERICA, INC.
    2. Securely install the cylinder boot to the front disc brake piston groove.
    3. Apply a thin coat of rubber grease to the outer peripheries of 2 front disc brake pistons, and install them to the front disc brake cylinder ASSY LH.
      CAUTION: Do not push the front disc brake piston in with excessive force.
  5. Installation of cylinder boot
    1. Securely install the cylinder boot to the front disc brake cylinder ASSY LH groove.
      Fig 3: Installing Cylinder Boot To Front Disc Brake Cylinder Assembly LH Groove
      G08557077Courtesy of SUBARU OF AMERICA, INC.
