Exploded View
Exploded View

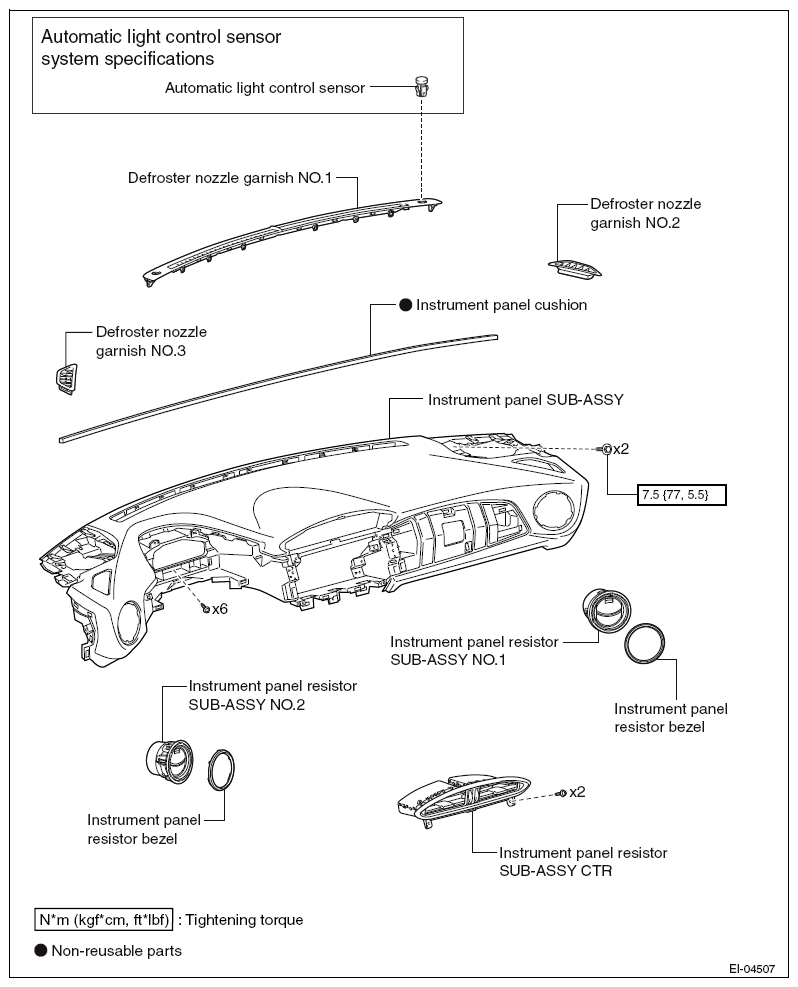

Fig 1: Exploded View Of Instrument Panel Upper With Torque Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

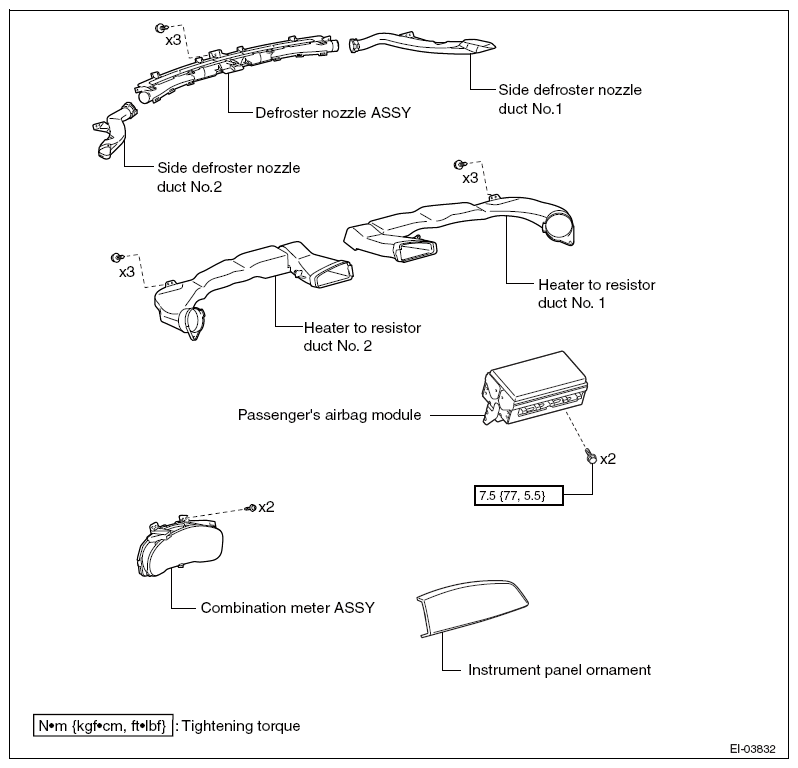

Fig 2: Exploded View Of Instrument Panel Upper With Torque Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

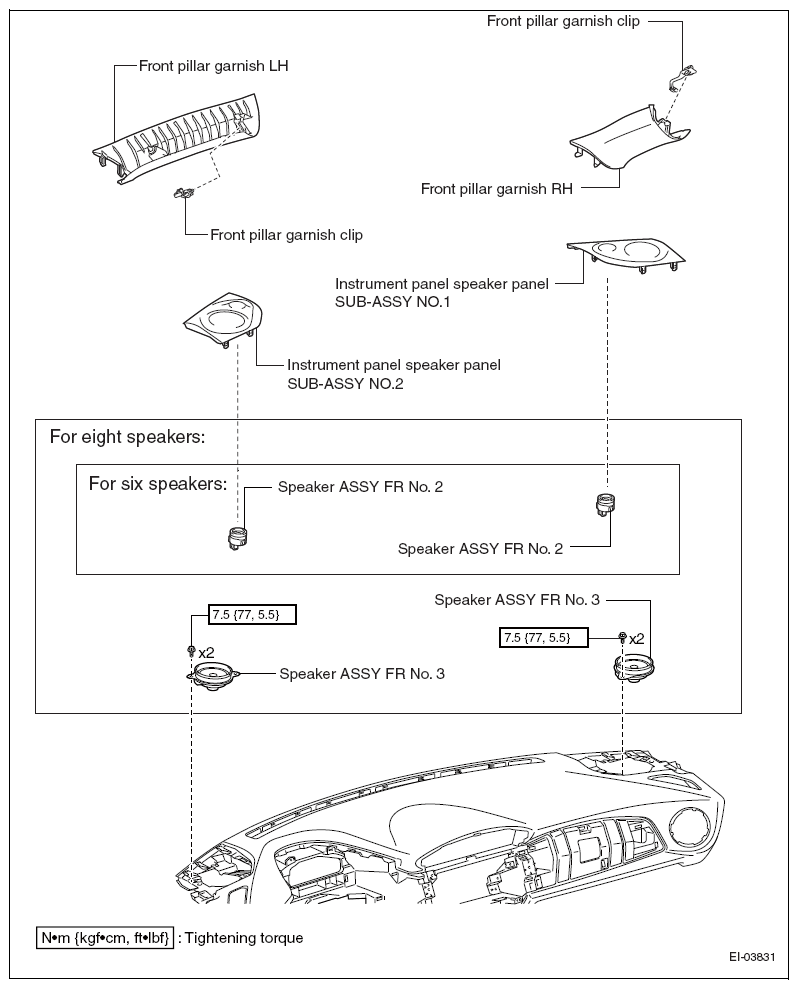

Fig 3: Exploded View Of Instrument Panel Upper With Torque Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
