Subaru
>>
2016
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Parking Brake System
>>
Parking Brake Cable Assembly
>>
Exploded View
Exploded View

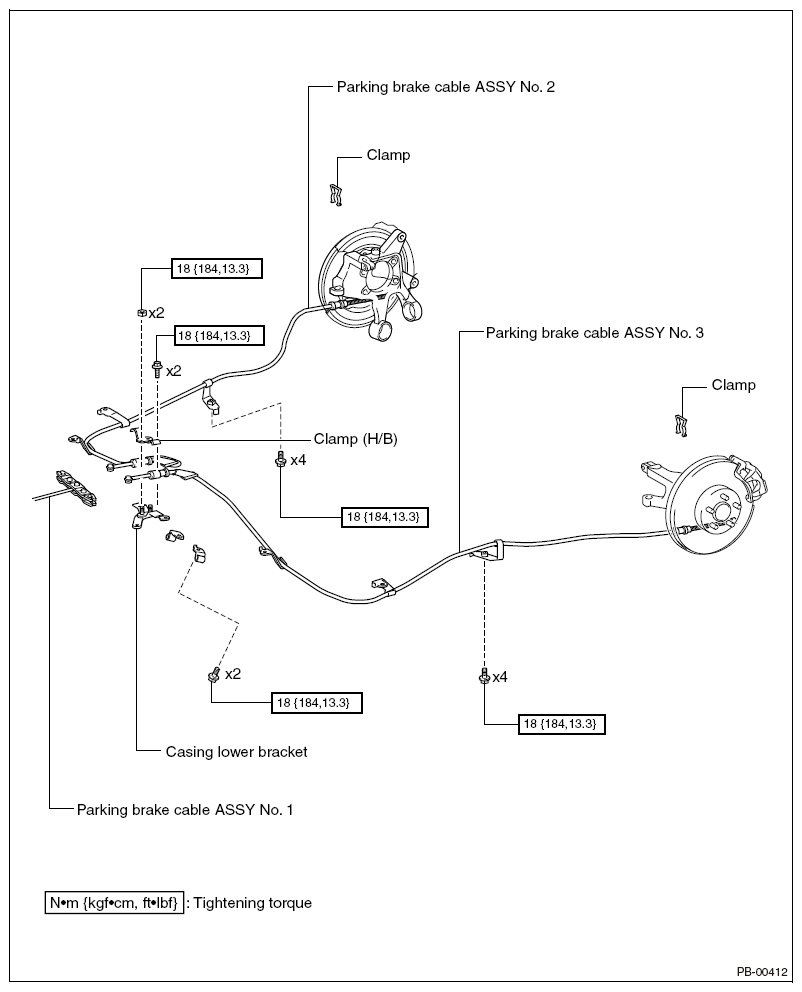

Fig 1: Exploded View Of Parking Brake Cable Assembly With Torque Specifications (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Parking Brake Cable Assembly With Torque Specifications (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Exploded View Of Parking Brake Cable Assembly With Torque Specifications (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
