Subaru
>>
2016
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Parking Brake System
>>
Parking Brake Assembly
>>
Exploded View
Exploded View

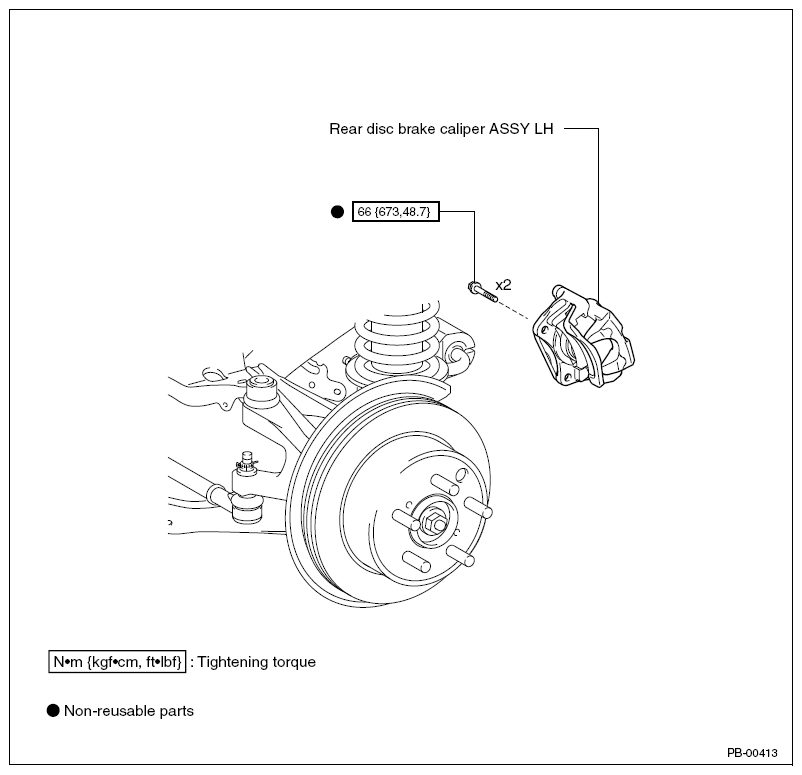

Fig 1: Exploded View Of Parking Brake Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

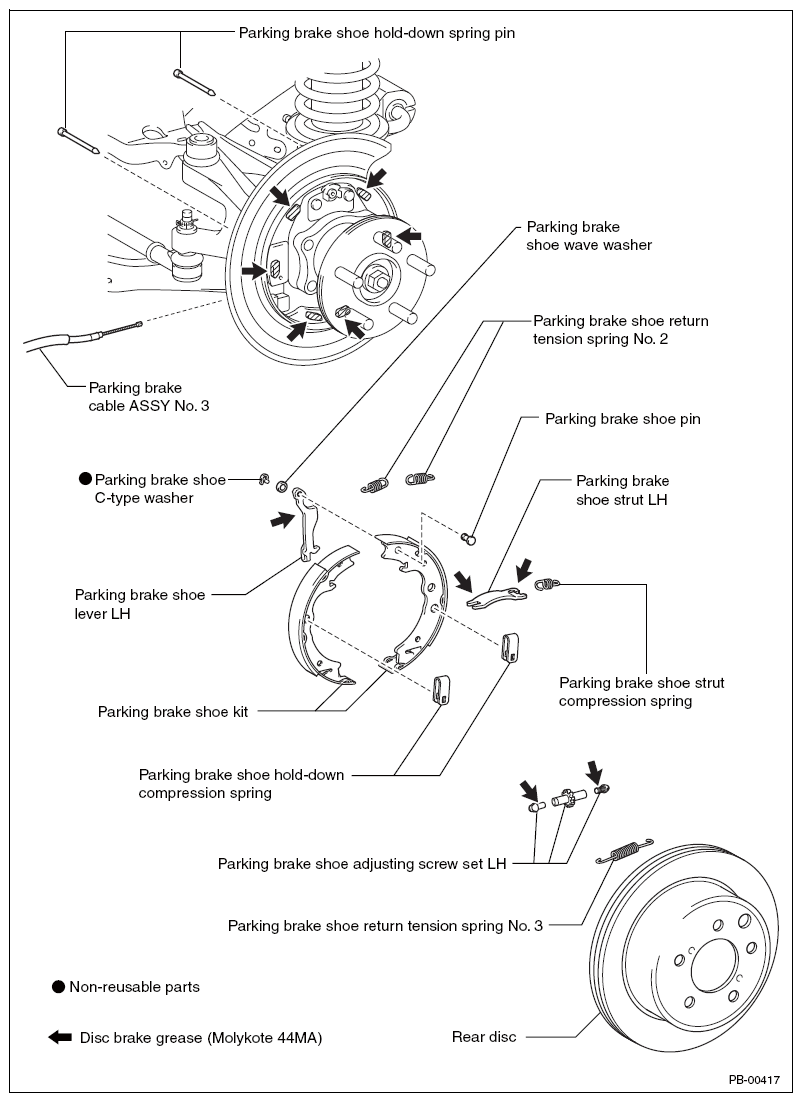

Fig 2: Exploded View Of Parking Brake Assembly (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
