MT Gear Shift Lever: Assembly

NOTE:

Clean all the parts before assembly.
Apply NIGTIGHT LYW No. 2 grease or equivalent to each part. < Ref. to 5MT GEAR SHIFT LEVER , COMPONENT, General Description.>

Mount the bushing and cushion rubber to the stay.

Fig 1: Identifying MT Gear Shift Lever Stay, Bushing And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Install the bushing and spacer to boss.

Fig 2: Identifying MT Gear Shift Lever Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Install the boss to the joint.
NOTE: Use a new self-locking nut.

Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 3: Identifying MT Gear Shift Lever Joint Boss
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring to gear shift lever and install the bushing.
NOTE: Apply grease to the bushing.

Fig 4: Identifying MT Gear Shift Lever Bushing, Snap Ring And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the bushing and O-ring, and then install to gear shift lever.

Fig 5: Identifying MT Gear Shift Lever Bushing And O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply sufficient grease into boss, and then install the gear shift lever to the stay.

Fig 6: Identifying Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.

Fig 7: Identifying MT Gear Shift Lever Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever and rod into boot hole.
Install the rod.
NOTE: Use a new self-locking nut.

Tightening torque:

12 N.m(1.2 kgf-m, 8.9 ft-lb)

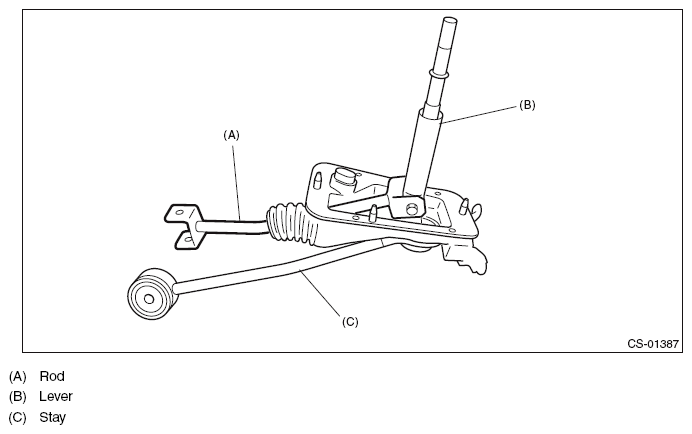

Fig 8: Identifying MT Gear Shift Lever Stay, Lever And Rod
Courtesy of SUBARU OF AMERICA, INC.
Install the lock wire.
NOTE: Use a new lock wire.

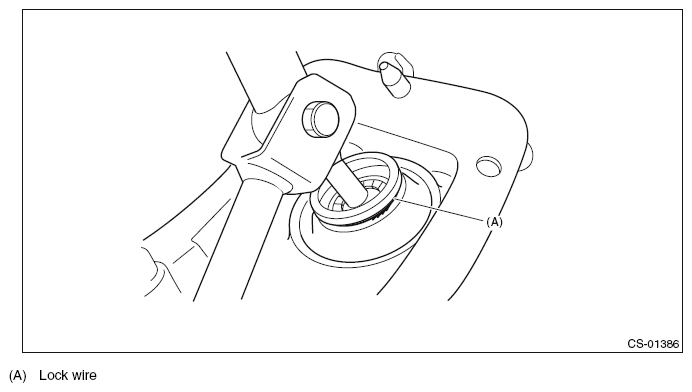

Fig 9: Identifying MT Gear Shift Lever Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Install the lock wire to the stay groove.
- Bend the extra wire to the same direction of lock wire winding.
Fig 10: Installing Lock Wire To Stay Groove
