Thrust Angle

  1. Park the vehicle on a level surface.
  2. Move the vehicle 3 to 4 meters (10 to 13 feet) straight forward.
  3. Draw the center of loci for both the front and rear axles.
  4. Measure distance "L" between the center lines of the axle loci.

    Thrust angle: Inspection value

    0°±30'

    Less than 30' when "L" is 23 mm (0.9 in) or less

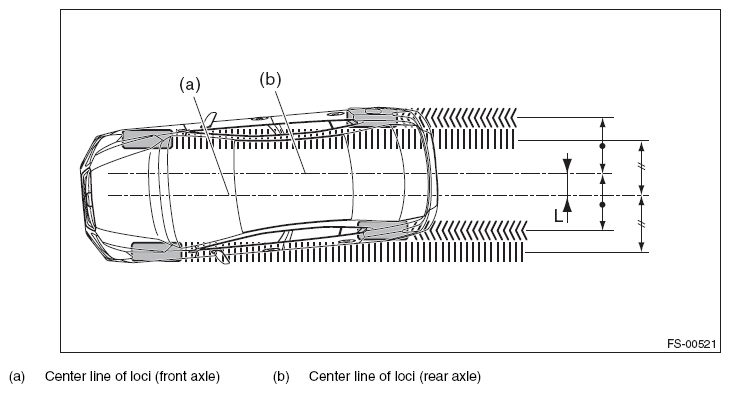

    Fig 1: Identifying Center Line Of Loci (Front Axle And Rear Axle)
    G09478581Courtesy of SUBARU OF AMERICA, INC.
