Front Suspension

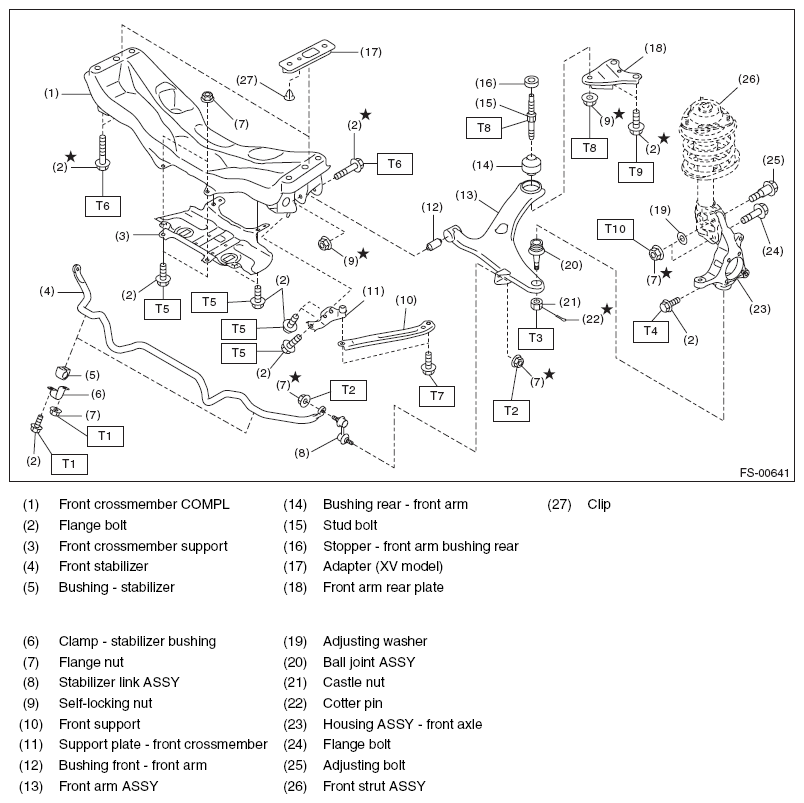

Fig 1: Front Suspension Components Location

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.55, 18.4)

T2: Except for XV model: 38 (3.87, 28.0)

XV model: 60 (6.12, 44.3)

T3: 39 (3.98, 28.8)

T4: 50 (5.10, 36.9)

T5: 60 (6.12, 44.3)

T6: 95 (9.69, 70.1)

T7: 100 (10.20, 73.8)

T8: 110 (11.22, 81.1)

T9: 150 (15.30, 110.6)

T10: 155 (15.81, 114.3)
