Home >> Subaru >> 2015 >> XV Crosstrek Base >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> General Description >> Components With Torque Specifications >> Front Strut

Front Strut

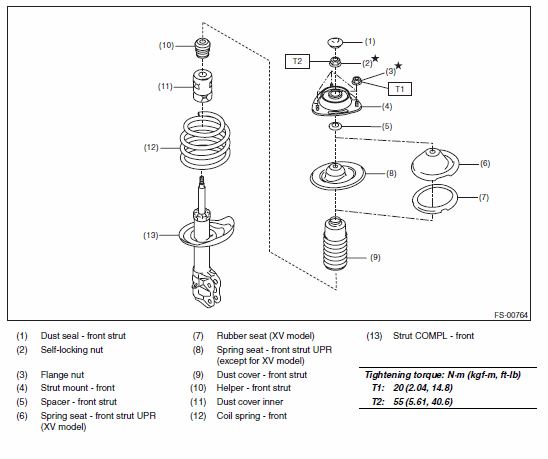

Fig 1: Front Strut Components Location

G09478571

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.04, 14.8)

T2: 55 (5.61, 40.6)
