Front Stabilizer: Removal

  1. Lift up the vehicle, and then remove the left and right front wheels.
  2. Remove the bolts and clips, and remove the under cover - front.

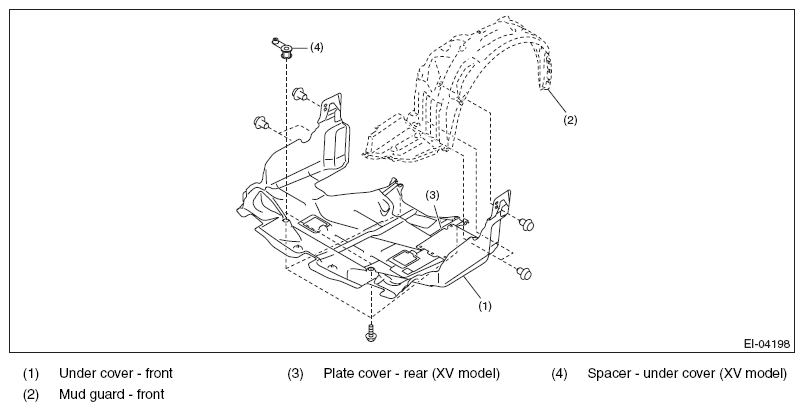

    Fig 1: Identifying Under Cover, Plate Cover, Spacer And Mud Guard
    G09478617Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt, and remove the front crossmember support.

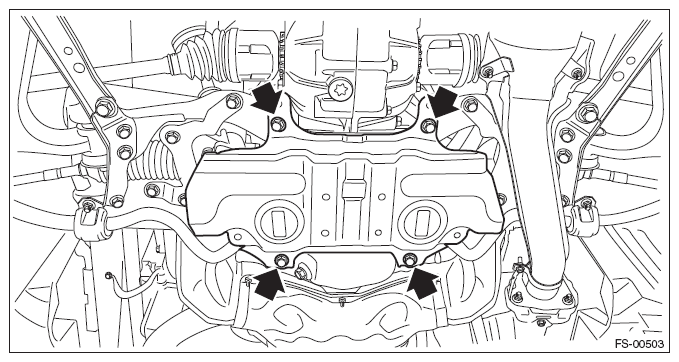

    Fig 2: Locating Front Crossmember Support Mounting Bolts
    G08316072Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the front stabilizer.
    1. Remove the left and right stabilizer links.
    2. Remove the clamp - stabilizer bushing on the left and right sides.
      Fig 3: Locating Front Stabilizer Mounting Bolts
      G08318299Courtesy of SUBARU OF AMERICA, INC.
